| PartNumber | B173HAN01.4 |
| Znamka | AUO |
| Velikost | 17.3 |
| Aplikacija | Laptop Gaming |
| Resolucija | 1920×1080 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 700:1 |
| Barve | 16.2M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | AUO |

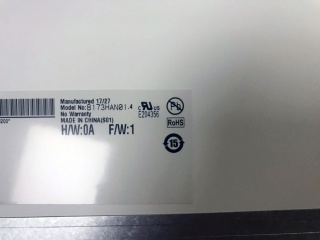

| panelni model | B173HAN01.4 (AUO149D) |
| velikost plošče | 17.3" |
| vrsta plošče | a-Si TFT-LCD, LCM |
| resolucija | 1920(RGB)×1080, FHD, 127PPI |
| slikovnih pik | RGB Vertical Stripe |
| prikazno območje | 381.888(W)×214.812(H) mm |
| odprtina okvirja | - |
| velikost obrisa | 398.1(W)×250.5(H) ×4(D) mm |
| površino | Antiglare, Hard coating (3H) |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 700:1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| način prikaza | AHVA, Normally Black, Transmissive |
| najboljši pogled na | Symmetry |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| barve zaslona | 16.2M 72% NTSC |
| tip svetilke | WLED , 15K hours , With LED Driver |
| pogostost | 120Hz |
| zaslon na dotik | Without |
| slog oblike | Flat (PCBA Flat, T3.4~4.0mm) |
| aplikacija | Laptop Gaming |
| signalni vmesnik | eDP (4 Lanes) , eDP1.4a , 40 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
