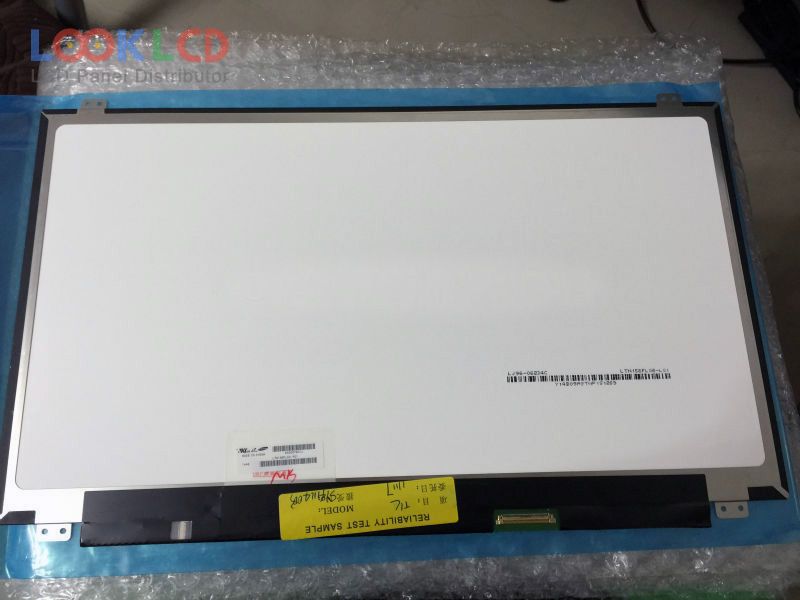

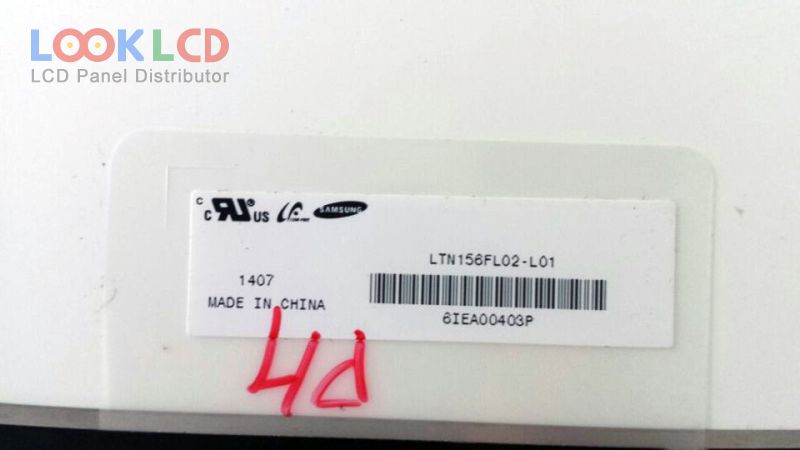

| PartNumber | LTN156FL02-L01 |
| Znamka | Samsung |
| Velikost | 15.6 |
| Aplikacija | NBPC |
| Resolucija | 3840×2160 |
| Sestava | LCM |
| Svetlost | 270 |
| CR | 700:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | SAMSUNG |
| panelni model | LTN156FL02-L01 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.6 inch |
| resolucija | 3840RG(BW)×2160 , UHD |
| način prikaza | PLS, Normally Black, Transmissive |
| aktivno območje | 344.448×193.752 mm |
| oris | 359.5×223.8×3 mm |
| slog oblike | Slim (PCBA Flat, Depth ≤3.2mm) |
| površino | Glare (Haze 0%) |
| svetlost | 270 cd/m² (Typ.) |
| kontrastno razmerje | 700:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193172% |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR＞10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 4S10PWLEDEmbedded (LED Driver) |

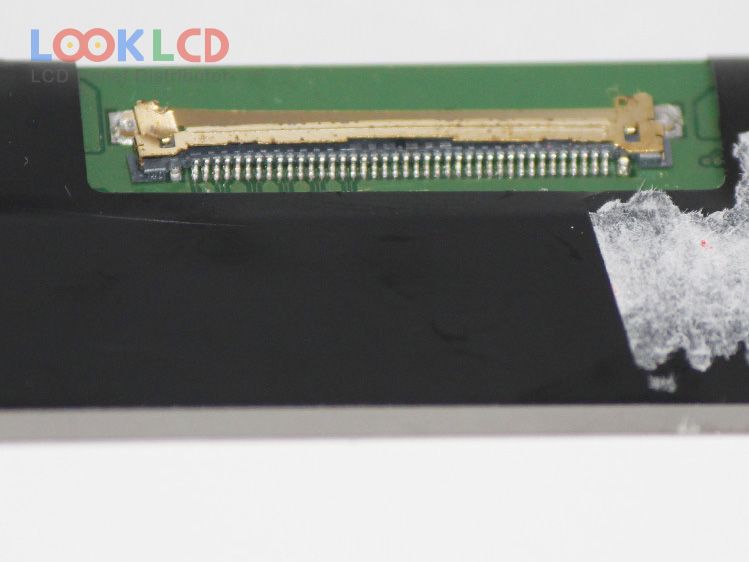

| signalni vmesnik | eDP (4 Lanes), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
| B156HW01 V0 | AUO | 15.6 | 1920×1080 |
| B156XTN03.2 | AUO | 15.6 | 1366×768 |
| LP156WH2-TLF1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TLA1 | LG Display | 15.6 | 1366×768 |
| LTN156AT01-D02 | Samsung | 15.6 | 1366×768 |
| LTN156AT16-401 | Samsung | 15.6 | 1366×768 |
| LTN156FL01-D01 | Samsung | 15.6 | 3840×2160 |
| LTN156FL02-L01 | Samsung | 15.6 | 3840×2160 |
| N156BGE-E41 | Innolux | 15.6 | 1366×768 |
| N156BGE-L21 | Innolux | 15.6 | 1366×768 |
| B154PW01 V0 | AUO | 15.4 | 1440×900 |
| LP140WF5-SPB3 | LG Display | 14.0 | 1920×1080 |
| LP140WH6-TJA1 | LG Display | 14.0 | 1366×768 |
| LP141WX5-TLD1 | LG Display | 14.1 | 1280×800 |
| LP154WX4-TLB4 | LG Display | 15.4 | 1280×800 |
| LQ133M1JW03 | SHARP | 13.3 | 1920×1080 |
| LTD133EWDD | TOSHIBA | 13.3 | 1280×800 |
| LTN156AT05-H02 | Samsung | 15.6 | 1366×768 |
| N133BGE-L21 | Innolux | 13.3 | 1366×768 |
| NT116WHM-N21 | BOE | 11.6 | 1366×768 |
