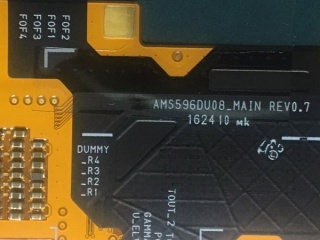

| PartNumber | AMS596DU08-0 |
| Znamka | SAMSUNG |
| Velikost | 6.0 |
| Aplikacija | Mobile Phone |
| Resolucija | 1440×2560 |
| Sestava | AM-OLED, Assembly |
| Svetlost | |
| CR | 10000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | self |
| Vmesnik | MIPI |
| znamka | SAMSUNG |
| model | AMS596DU08-0 |
| velikost diagonale | 6.0 inch |
| vrsta | AM-OLED, Assembly |
| slikovnih pik | 1440(RG/BG)×2560 [Quad-HD] 402PPI |
| konfiguracijo | RG/BG PenTile |
| aktivno območje | 74.16(H)×131.84(V) mm |
| obris dim. | 81.26(H)×151.4(V) mm |
| svetilnost | 350 cd/m² (Typ.) |
| kontrastno razmerje | 10000:1 (Min.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | - |
| vidni kot | 88/88/88/88 (Min.)(CR≥10) |
| način delovanja | - |
| podpira barvo | 16.7M 100% NTSC |
| Izvor svetlobe | self |
| utež | - |
| namenjen za | Mobile Phone |
| hitrost sličic | 60Hz |
| plošča na dotik | PCAP |
| tip vmesnika | MIPI (2 ch, 4 data lanes) , 60 pins Connector |
| napajanje | 1.8/3.1/4.0V (Typ.)(IOVDD/VCI/VBAT) |
| okolju | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
