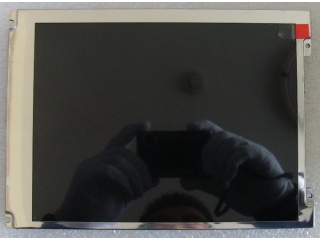

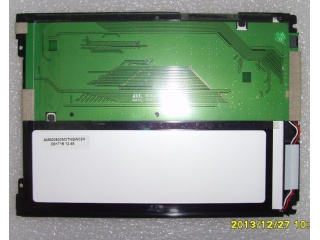

| PartNumber | AM-800600M3TNQW-02H |
| Znamka | AMPIRE |
| Velikost | 8.4 |
| Aplikacija | Industrial |
| Resolucija | 800×600 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 600:1 |
| Barve | 262K |
| Osvetlitev ozadja | 12S4P |
| Vmesnik | LVDS |
| proizvajalec | AMPIRE |
| ime modela | AM-800600M3TNQW-02H |
| velikost zaslona | 8.4 inch |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| število slikovnih pik | 800(RGB)×600 (SVGA) 119PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 170.4 × 127.8 (H×V) |
| obris (mm) | 203 × 145.5 × 10.4 (H×V×D) |
| površina okvirja (mm) | 174.15 × 131.2 (H×V) |
| zdravljenje | - |
| svetilnost | 350 cd/m² (Typ.) |
| kontrastno razmerje | 600 : 1 (Typ.) (TM) |
| vidni kot | 75/75/60/70 (Typ.)(CR≥10) |
| odgovor | 8 (Typ.)(Tr+Td) ms |
| dober pogled na | - |
| način dela | TN, Normally White, Transmissive |
| barvna globina | 262K 70% NTSC |
| osvetlitev ozadja | 12S4P WLED , 50K hours , With LED Driver |
| masa | 280g |
| uporablja za | Industrial |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| vrsto signala | LVDS (1 ch, 6-bit) , 20 pins Connector |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
