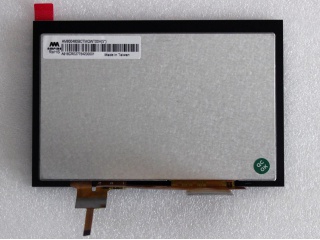

| PartNumber | AM-800480BCTMQW-T00H |
| Znamka | AMPIRE |
| Velikost | 5.0 |
| Aplikacija | Industrial |
| Resolucija | 800×480 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 600:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 6S2P |
| Vmesnik | Parallel |
| proizvajalec | AMPIRE |
| velikost zaslona | 5.0 inch |
| število slikovnih pik | 800(RGB)×480 (WVGA) 188PPI |
| aktivna površina (mm) | 108 × 64.8 (H×V) |
| svetilnost | 340 cd/m² (Typ.) |
| vidni kot | 75/75/60/70 (Typ.)(CR≥10) |
| dober pogled na | 6 o'clock |
| barvna globina | 16.7M 52% NTSC |
| masa | - |
| hitrost osveževanja | 60Hz |
| vrsto signala | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| ime modela | AM-800480BCTMQW-T00H |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| ureditev | RGB Vertical Stripe |
| obris (mm) | 129.9 × 86.7 × 7.18 (H×V×D) |
| kontrastno razmerje | 600 : 1 (Typ.) (TM) |
| odgovor | 4/12 (Typ.)(Tr/Td) ms |
| način dela | TN, Normally White, Transmissive |
| osvetlitev ozadja | 6S2P WLED , 50K hours , No Driver |
| uporablja za | Industrial |
| zaslon na dotik | PCAP |
| C050FTN01.0 | AUO | 5.0 | 480×234 |
| EJ050NA-01G | Innolux | 5.0 | 800×480 |
| G050VTN01.1 | AUO | 5.0 | 800×480 |
| H495TAN01.1 | AUO | 5.0 | 720×1280 |
| HSD050FMW2-D00 | HannStar | 5.0 | 540×960 |
| HSD050I9W1-A00 | HannStar | 5.0 | 480×272 |
| LM050QC1T01 | SHARP | 5.0 | 320×240 |
| LMS500HF06 | Samsung | 5.0 | 480×272 |
| LQ050A5BS01 | SHARP | 5.0 | 320×234 |
| TM050LDZ00 | Tianma | 5.0 | 240×400 |
