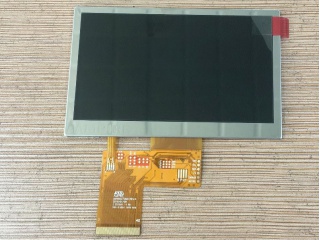

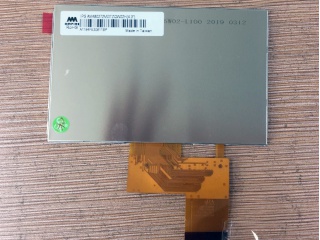

| PartNumber | AM-480272MGTZQW-02H |
| Znamka | AMPIRE |
| Velikost | 4.3 |
| Aplikacija | Industrial Outdoor H |
| Resolucija | 480×272 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 5S3P |
| Vmesnik | Parallel |
| znamka plošče | AMPIRE |
| panelni model | AM-480272MGTZQW-02H |
| velikost plošče | 4.3" |
| vrsta plošče | a-Si TFT-LCD, LCM |
| resolucija | 480(RGB)×272, WQVGA, 128PPI |
| slikovnih pik | RGB Vertical Stripe |
| prikazno območje | 95.04(W)×53.856(H) mm |
| odprtina okvirja | 97.6(W)×56.0(H) mm |
| velikost obrisa | 105.6(W)×67.2(H) ×3.1(D) mm |
| površino | - |
| svetlost | 1000 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| način prikaza | IPS, Normally Black, Transmissive |
| najboljši pogled na | Symmetry |
| odzivni čas | 30 (Typ.)(Tr+Td) |
| barve zaslona | 16.7M 51% NTSC |
| tip svetilke | 5S3P WLED , Without Driver |
| pogostost | 60Hz |
| zaslon na dotik | Without |
| teža plošče | - |
| aplikacija | Industrial Outdoor High Brightness Automotive Display |
| signalni vmesnik | Parallel RGB (1 ch, 8-bit) , 40 pins FPC |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: -20 ~ 70 °C ; Storage Temp.: -30 ~ 80 °C |
