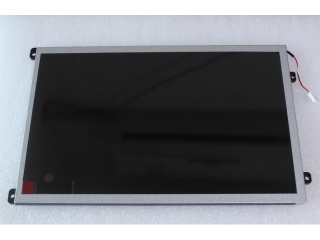

| PartNumber | AM-19201200CTZQW-02 |
| Znamka | AMPIRE |
| Velikost | 10.1 |
| Aplikacija | Industrial Outdoor H |
| Resolucija | 1920×1200 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka | AMPIRE |
| model | AM-19201200CTZQW-02 |
| velikost diagonale | 10.1 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 1920(RGB)×1200 [WUXGA] 225PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 216.576(H)×135.36(V) mm |
| obris dim. | 244.8(H)×155.3(V) ×7.07(D) mm |
| svetilnost | 1000 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| način delovanja | AHVA, Normally Black, Transmissive |
| podpira barvo | 16.7M 49% NTSC |
| Izvor svetlobe | WLED , 50K hours , With LED Driver |
| utež | - |
| namenjen za | Industrial Outdoor High Brightness |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| tip vmesnika | LVDS (2 ch, 8-bit) , 45 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: -20 ~ 65 °C ; Storage Temperature: -20 ~ 65 °C |
