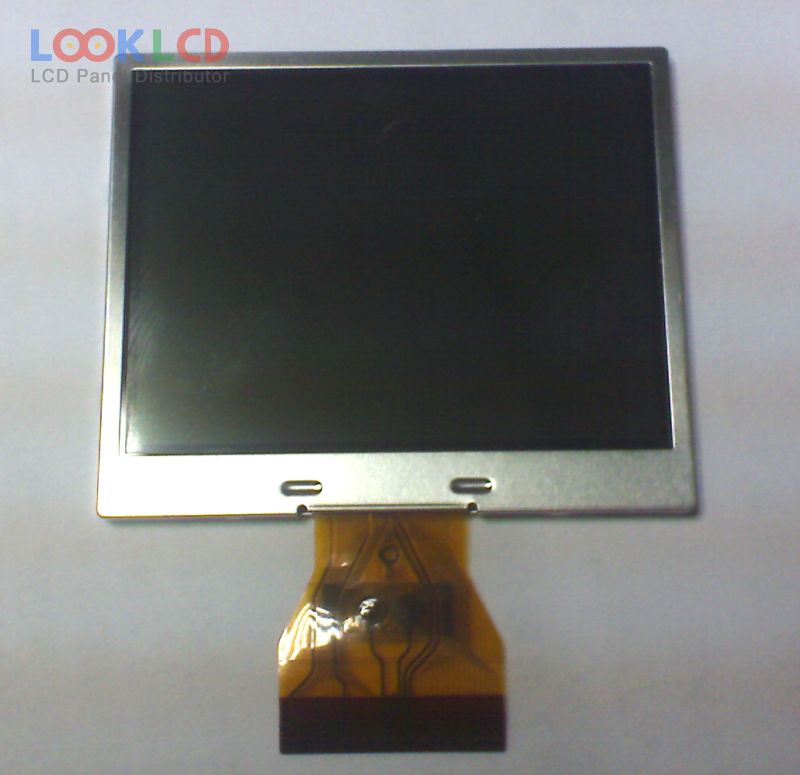

| PartNumber | 990000270 |
| Znamka | TPO |
| Velikost | 2.5 |
| Aplikacija | DSC |
| Resolucija | 320×240 |
| Sestava | LCM |
| Svetlost | 250 |
| CR | 300:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | Serial RGB |
| znamka plošče | TPO |
| panelni model | 990000270 |
| vrsta plošče | LTPS TFT-LCD , LCM |
| velikost plošče | 2.5 inch |
| resolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 49.946×37.56 mm |
| oris | 56.2×47.8 mm |
| površino | Hard coating |
| svetlost | 250 cd/m² (Typ.) |
| kontrastno razmerje | 300:1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 5/11 (Typ.)(Tr/Td) |
| vidni kot | 40/40/20/50 (Typ.)(CR≥10)(L/R/U/D) |
| tip svetilke | 1 pcsWLEDWithout Driver |
| signalni vmesnik | Serial RGB (8-bit) + SPI, CCIR601, 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | DSC |
