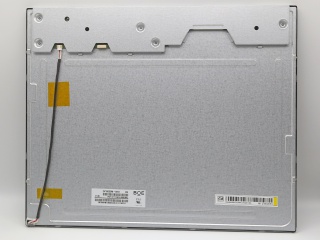

| PartNumber | ZV190E0M-N10 |
| Znamka | BOE |
| Velikost | 19.0 |
| Aplikacija | Industrial |
| Resolucija | 1280×1024 |
| Sestava | LCM, a-Si TFT-LCD |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| proizvajalec | BOE |
| ime modela | ZV190E0M-N10 |
| velikost zaslona | 19.0 inch |
| vrsto zaslona | LCM, a-Si TFT-LCD |
| število slikovnih pik | 1280(RGB)×1024 (SXGA) 86PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 374.784 × 299.827 (H×V) |
| obris (mm) | 396 × 324 × 13.38 (H×V×D) |
| površina okvirja (mm) | 378.8 × 303 (H×V) |
| zdravljenje | - |
| svetilnost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 1000 : 1 (Typ.) (TM) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| odgovor | 14 (Typ.)(G to G) ms |
| dober pogled na | Symmetry |
| način dela | ADS, Normally Black, Transmissive |
| barvna globina | 16.7M 90% NTSC |
| osvetlitev ozadja | WLED , 50K hours , With LED Driver |
| masa | 1.80Kgs (Typ.) |
| uporablja za | Industrial |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| vrsto signala | LVDS (2 ch, 8-bit) , Connector 30 pins |
| napajanje z napetostjo | 5.0V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 75 °C Operating Temp.: -20 ~ 70 °C |
