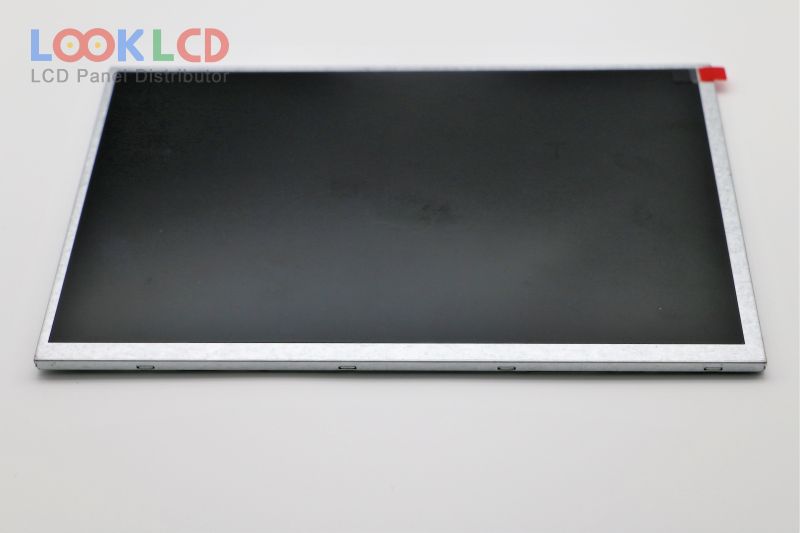

| PartNumber | YX101GL-01A |
| Znamka | SEBO |
| Velikost | 10.1 |
| Aplikacija | PAD |
| Resolucija | 1280×800 |
| Sestava | LCM |
| Svetlost | 850 |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | SEBO |
| panelni model | YX101GL-01A |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 10.1 inch |
| resolucija | 1280(RGB)×800 , WXGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno območje | 216.96×135.6 mm |
| oris | 229.46×149.1×6.9 mm |
| površino | Antiglare |
| svetlost | 850 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193150% |
| odzivni čas | 10/15 (Typ.)(Tr/Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 6S6PWLEDWithout Driver |
| signalni vmesnik | LVDS (1 ch, 8-bit), 40 pins |
| vhodna napetost | 2.5/8.2/22.0/-7.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| aplikacija | PAD |
