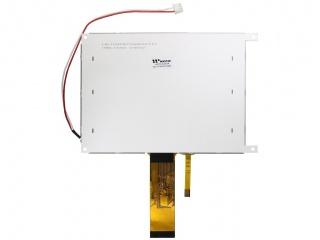

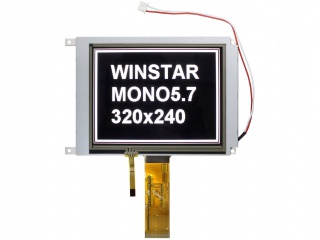

| PartNumber | WF57STIACDNT0 |
| Znamka | Winstar |
| Velikost | 5.7 |
| Aplikacija | Industrial |
| Resolucija | 320×240 |
| Sestava | LCM, a-Si TFT-LCD |
| Svetlost | |
| CR | 800:1 |
| Barve | Grayscale |
| Osvetlitev ozadja | WLED |
| Vmesnik | 8/16-bit |
| proizvajalec | Winstar |
| ime modela | WF57STIACDNT0 |
| velikost zaslona | 5.7 inch |
| vrsto zaslona | LCM, a-Si TFT-LCD |
| število slikovnih pik | 320×240 (QVGA) 70PPI |
| ureditev | Rectangle |
| aktivna površina (mm) | 115.2 × 86.4 (H×V) |
| obris (mm) | 160 × 109 × 9 (H×V×D) |
| površina okvirja (mm) | 118.2 × 87.4 (H×V) |
| zdravljenje | Antiglare |
| svetilnost | 700 cd/m² (Typ.) |
| kontrastno razmerje | 800 : 1 (Typ.) (TM) |
| vidni kot | - |
| odgovor | - |
| dober pogled na | 12 o'clock |
| način dela | TN, Normally White, Transmissive |
| barvna globina | Grayscale |
| osvetlitev ozadja | WLED , No Driver |
| masa | - |
| uporablja za | Industrial |
| hitrost osveževanja | - |
| zaslon na dotik | 4-wire Resistive Touch |
| vrsto signala | 8/16-bit 6800/8080 parallel, 3/4-wire SPI , FPC 22 pins |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| AA057VF12 | Mitsubishi | 5.7 | 640×480 |
| AM-640480G2TNQW-00H-F | AMPIRE | 5.7 | 640×480 |
| AM-640480G2TNQW-T01H-A | AMPIRE | 5.7 | 640×480 |
| AM-640480GFTNQW-T01H-L | AMPIRE | 5.7 | 640×480 |
| C555001 | SII | 5.7 | 320×240 |
| CLAA057VC01CT | CPT | 5.7 | 640×480 |
| EL320.240.36 | Lumineq | 5.7 | 320×240 |
| NL6448BC18-01F | NLT | 5.7 | 640×480 |
| SP14Q002-A1 | KOE | 5.7 | 320×240 |
| TM057KDH02 | Tianma | 5.7 | 320×240 |
