| PartNumber | WEO002002AL |
| Znamka | Winstar |
| Velikost | 2.9 |
| Aplikacija | Instruments & Me |
| Resolucija | 5×8 |
| Sestava | PM-OLED, OLED |
| Svetlost | |
| CR | 2000:1 |
| Barve | Mono(Yellow) |
| Osvetlitev ozadja | self |
| Vmesnik | 8-bit |
| znamka | Winstar |
| model | WEO002002AL |
| velikost diagonale | 2.9 inch |
| vrsta | PM-OLED, OLED |
| format char | 5×8 dots |
| velikost pisave | 3.22×5.57 mm |
| višina pisave | 3.7×5.95 mm |
| aktivno območje | 73.52(H)×11.52(V) mm |

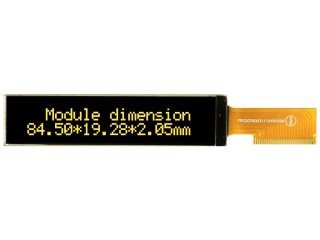

| obris dim. | 84.5(H)×19.2(V) ×2.15(D) mm |
| območje okvirja | 75.32(H)×13.52(V) mm |
| zdravljenje | - |
| svetilnost | - |
| kontrastno razmerje | 2000:1 (Typ.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | 0.01 (Typ.) |
| vidni kot | 88/88/88/88 |
| način delovanja | - |
| podpira barvo | Mono(Yellow) |
| Izvor svetlobe | self |
| utež | - |
| namenjen za | Instruments & Meters |
| hitrost sličic | - |
| plošča na dotik | Without |
| detajl d-ic | COG Built-in SSD1311M1Z |
| tip vmesnika | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 32 pins FPC |
| napajanje | 3.3/5.0V (Typ.)(VDD) |
