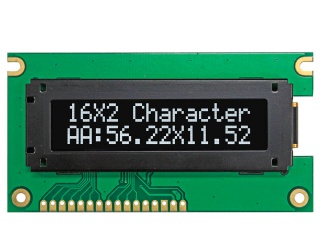

| PartNumber | WEO001602GW |
| Znamka | Winstar |
| Velikost | 2.3 |
| Aplikacija | Instruments & Me |
| Resolucija | 5×8 |
| Sestava | OLED , PM-OLED |
| Svetlost | |
| CR | 2000:1 |
| Barve | Mono(White) |
| Osvetlitev ozadja | self |
| Vmesnik | 8-bit |
| proizvajalec | Winstar |
| ime modela | WEO001602GW |
| velikost zaslona | 2.3 inch |
| vrsto zaslona | OLED , PM-OLED |
| char številka | 16 characters × 2 lines 7PPI |
| format char | 5×8 dots |
| korak (mm) | 3.55×5.95 (H×V) |
| velikost črk (mm) | 2.97×5.57 (H×V) |
| aktivna površina (mm) | 56.22 × 11.52 (H×V) |
| obris (mm) | 79 × 44 × 9.67 (H×V×D) |
| površina okvirja (mm) | 58.22 × 13.52 (H×V) |
| zdravljenje | - |
| svetilnost | - |
| kontrastno razmerje | 2000 : 1 (Typ.) (TM) |
| vidni kot | 88/88/88/88 |
| odgovor | 0.01 (Typ.) ms |
| dober pogled na | Symmetry |
| način dela | - |
| barvna globina | Mono(White) |
| osvetlitev ozadja | self |
| masa | - |
| uporablja za | Instruments & Meters |
| hitrost osveževanja | - |
| zaslon na dotik | Without |
| seznam gonilnikov ic | Built-in COG SSD1311M1Z |
| vrsto signala | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 16 pins Pad |
| napajanje z napetostjo | 3.3/5.0V (Typ.)(VDD) |
