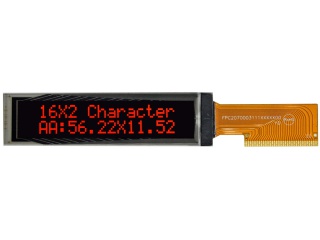

| PartNumber | WEO001602CR |
| Znamka | Winstar |
| Velikost | 2.3 |
| Aplikacija | Instruments & Meters |
| Resolucija | 16×27 |
| Sestava | PM-OLED , OLED |
| Svetlost | |
| CR | 2000:1 |
| Barve | Mono(Red) |
| Osvetlitev ozadja | self |
| Vmesnik | 8-bit |
| znamka plošče | Winstar |
| velikost plošče | 2.3" |
| format prikaza | 16 characters × 2 lines, 7PPI |
| velikost znakov | 2.97×5.57(W×H) mm |
| prikazno območje | 56.22(W)×11.52(H) mm |
| velikost obrisa | 68.5(W)×17.5(H) ×2.25(D) mm |
| svetlost | - |
| vidni kot | 88/88/88/88 |
| najboljši pogled na | Symmetry |
| barve zaslona | Mono(Red) |
| pogostost | - |
| voznik ic | COG Built-in SSD1311M1Z |
| teža plošče | - |
| signalni vmesnik | 8-bit 6800/8080 parallel, 4-wire SPI, I²C , 33 pins FPC |
| vhodna napetost | 3.3/5.0V (Typ.)(VDD) |
| panelni model | WEO001602CR |
| vrsta plošče | PM-OLED , OLED |
| format pisave | 5×8 dots |
| višina znakov | 3.55×5.95(W×H) mm |
| odprtina okvirja | 58.22(W)×13.52(H) mm |
| površino | - |
| kontrastno razmerje | 2000:1 (Typ.) (TM) |
| način prikaza | - |
| odzivni čas | 0.01 (Typ.) |
| tip svetilke | self |
| zaslon na dotik | Without |
| aplikacija | Instruments & Meters |
