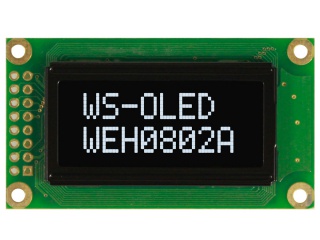

| PartNumber | WEH000802AW |
| Znamka | Winstar |
| Velikost | 1.2 |
| Aplikacija | Instruments & Me |
| Resolucija | 8×26 |
| Sestava | PM-OLED, OLED |
| Svetlost | |
| CR | |
| Barve | Mono(White) |
| Osvetlitev ozadja | self |
| Vmesnik | CPU/SPI |
| znamka plošče | Winstar |
| panelni model | WEH000802AW |
| velikost plošče | 1.2" |
| vrsta plošče | PM-OLED, OLED |
| format prikaza | 8 characters × 2 lines, 6PPI |
| format pisave | 5×8 dots |
| velikost znakov | 2.96×5.56(W×H) mm |
| višina znakov | 3.6×6.3(W×H) mm |
| prikazno območje | 28.16(W)×11.89(H) mm |
| odprtina okvirja | 38(W)×16(H) mm |
| velikost obrisa | 58(W)×32(H) ×10(D) mm |
| površino | - |
| vidni kot | - |
| način prikaza | - |
| najboljši pogled na | Symmetry |
| odzivni čas | - |
| barve zaslona | Mono(White) |
| tip svetilke | self |
| pogostost | - |
| zaslon na dotik | Without |
| voznik ic | COBBuilt-in WS0010 |
| teža plošče | - |
| aplikacija | Instruments & Meters |
| signalni vmesnik | CPU/SPI , 16 pins Pad |
| vhodna napetost | 5.0V (Typ.) |
| LPM012A154A | JDI | 1.2 | 218×218 |
| LS012B4DG01 | SHARP | 1.2 | 184×38 |
| LS012B7DD01 | SHARP | 1.2 | 184×38 |
| LS012B7DH02 | SHARP | 1.2 | 240×240 |
| NVK-080SC002T-S-0200 | Neoview Kolon | 1.2 | 128×80 |
