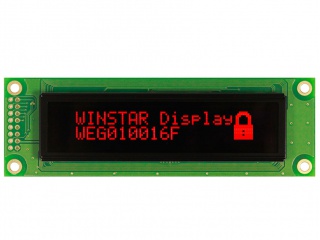

| PartNumber | WEG010016FR |
| Znamka | Winstar |
| Velikost | 2.6 |
| Aplikacija | Instruments & Meters |
| Resolucija | 100×16 |
| Sestava | OLED , PM-OLED |
| Svetlost | |
| CR | |
| Barve | Mono(Red) |
| Osvetlitev ozadja | self |
| Vmesnik | CPU/SPI |
| proizvajalec | Winstar |
| velikost zaslona | 2.6 inch |
| število slikovnih pik | 100×16 39PPI |
| aktivna površina (mm) | 64.95 × 11.15 (H×V) |
| površina okvirja (mm) | 85 × 18.6 (H×V) |
| vidni kot | - |
| dober pogled na | Symmetry |
| barvna globina | Mono(Red) |
| masa | - |
| hitrost osveževanja | - |
| seznam gonilnikov ic | Built-in COG WS0010 |
| vrsto signala | CPU/SPI , 16 pins Pad |
| napajanje z napetostjo | 5.0V (Typ.) |
| maks. ocene | - Operating Temp.: -40 ~ 80 °C |
| ime modela | WEG010016FR |
| vrsto zaslona | OLED , PM-OLED |
| ureditev | Rectangle |
| obris (mm) | 116 × 37 × 9.8 (H×V×D) |
| zdravljenje | - |
| odgovor | - |
| način dela | - |
| osvetlitev ozadja | self |
| uporablja za | Instruments & Meters |
| zaslon na dotik | Without |
| A026EAN01.0 | AUO | 2.6 | 800×1280 |
| AMDM001 | Samsung | 2.6 | 240×400 |
| AMS260CM61 | Samsung | 2.6 | 240×320 |
| L5F30774P01 | Epson | 2.6 | 240×320 |
| LS026B8PX04 | SHARP | 2.6 | 240×400 |
| LS026Q3DX01 | SHARP | 2.6 | 240×320 |
| LS026Q7UX01 | SHARP | 2.6 | 320×240 |
| TD026TTEA1 | TPO | 2.6 | 480×640 |
