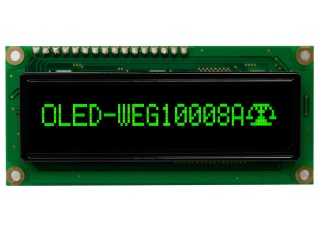

| PartNumber | WEG010008AG |
| Znamka | Winstar |
| Velikost | 2.4 |
| Aplikacija | Instruments & Me |
| Resolucija | 100×8 |
| Sestava | PM-OLED, OLED |
| Svetlost | |
| CR | |
| Barve | Mono(Green) |
| Osvetlitev ozadja | self |
| Vmesnik | CPU/SPI |
| znamka | Winstar |
| model | WEG010008AG |
| velikost diagonale | 2.4 inch |
| vrsta | PM-OLED, OLED |
| slikovnih pik | 100×8 42PPI |
| konfiguracijo | Rectangle |
| aktivno območje | 59.95(H)×6.35(V) mm |
| obris dim. | 80(H)×36(V) ×10(D) mm |
| območje okvirja | 66.0(H)×16.0(V) mm |
| zdravljenje | - |
| smer pogleda | Symmetry |
| odzivni čas | - |
| vidni kot | - |
| način delovanja | - |
| podpira barvo | Mono(Green) |
| Izvor svetlobe | self |
| utež | - |
| namenjen za | Instruments & Meters |
| hitrost sličic | - |
| plošča na dotik | Without |
| detajl d-ic | COB Built-in WS0010 |
| tip vmesnika | CPU/SPI , 16 pins Pad |
| napajanje | 5.0V (Typ.) |
