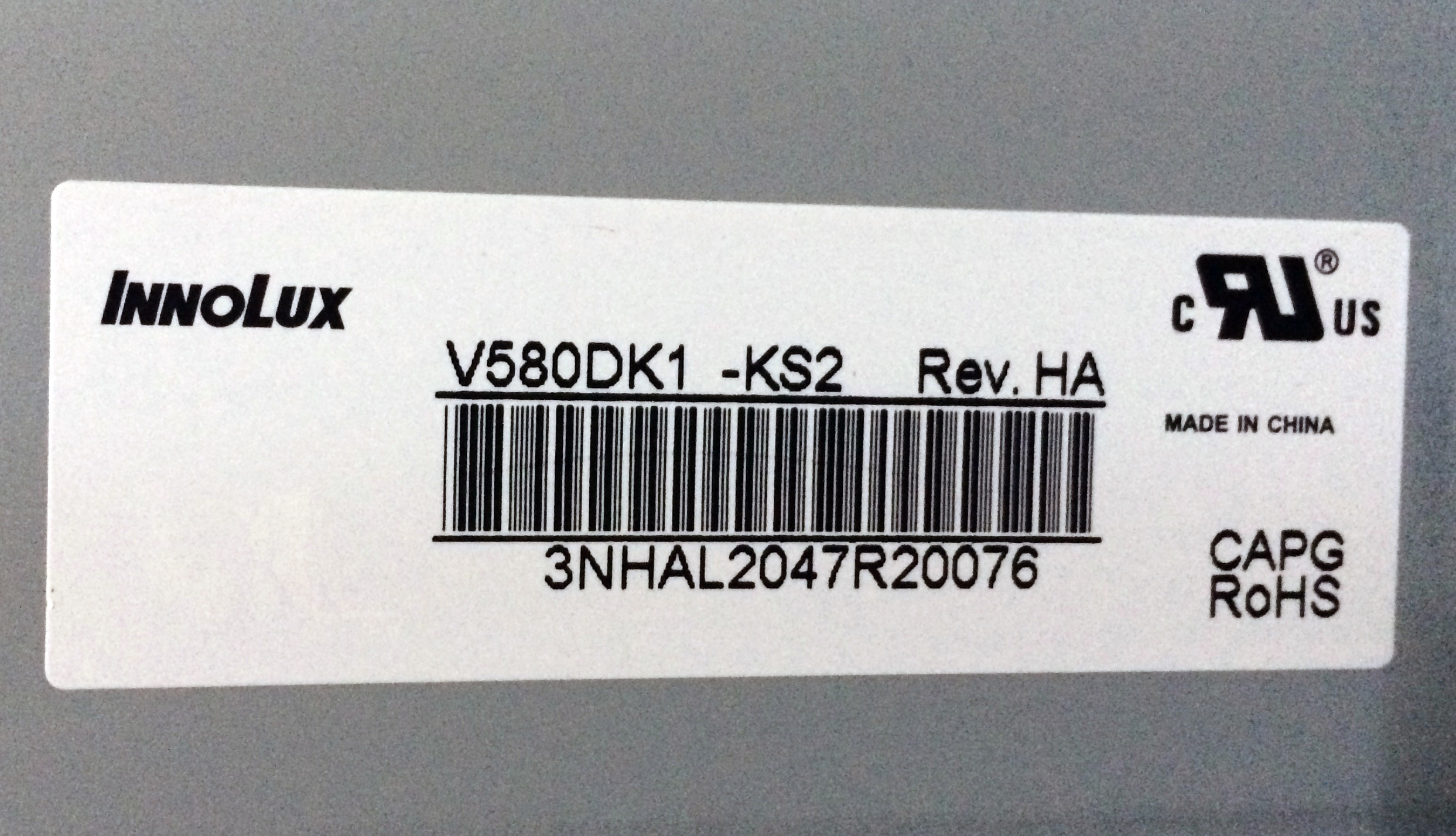

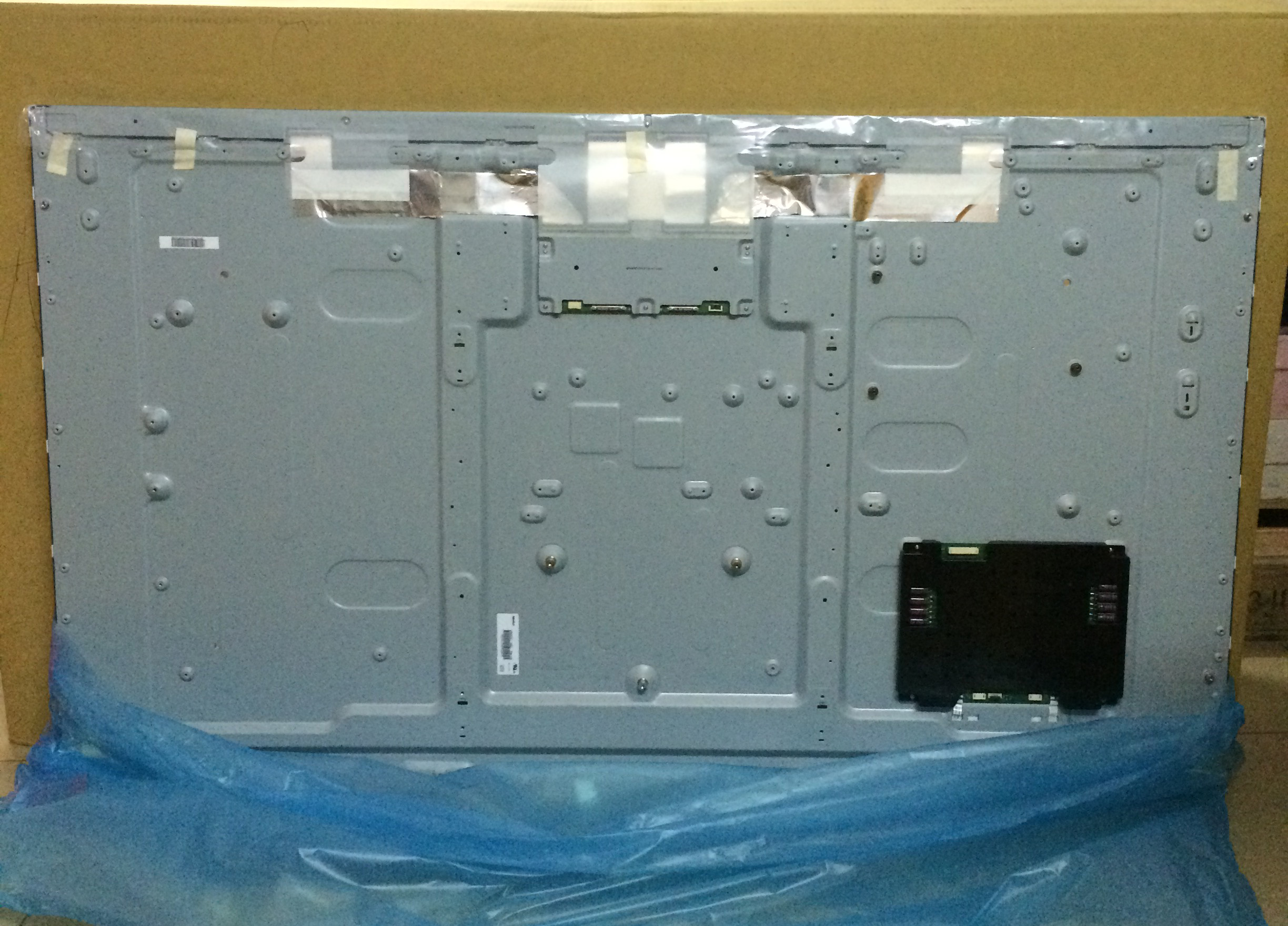

| PartNumber | V580DK1-KS2 Rev.HA |
| Znamka | Innolux |
| Velikost | 58 |
| Aplikacija | TV Sets |
| Resolucija | 3840×2160 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 3000:1 |
| Barve | 1.07B |
| Osvetlitev ozadja | WLED |
| Vmesnik | |
| proizvajalec | Innolux |
| velikost zaslona | 58 inch |
| število slikovnih pik | 3840(RGB)×2160 (UHD) 76PPI |
| aktivna površina (mm) | 1270.08 × 721.44 (H×V) |
| površina okvirja (mm) | 1275.3 × 726.7 (H×V) |
| svetilnost | 360 (Typ.)(cd/m²) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| dober pogled na | Symmetry |
| barvna globina | 1.07B 98% DCI-P3 |
| masa | 19.1±0.1Kgs |
| hitrost osveževanja | 120Hz |
| ime modela | V580DK1-KS2 Rev.HA |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| ureditev | RGB Vertical Stripe |
| obris (mm) | 1290.3 × 744.7 × 28.6 (H×V×D) |
| zdravljenje | Glare (Haze 0%), Hard coating (3H) |
| kontrastno razmerje | 3000 : 1 (Typ.) (TM) |
| način dela | Super MVA, Normally Black, Transmissive |
| odgovor | 6.5 (Typ.)(G to G) ms |
| osvetlitev ozadja | WLED , 30K hours , With LED Driver |
| uporablja za | TV Sets |
| zaslon na dotik | Without |
| LK580Z3LA13 | SHARP | 58 | 2560×1080 |
| T576DC01 V0 | AUO | 58 | 2560×1080 |
| V580DK1-KS2 | Innolux | 58 | 3840×2160 |
| V580DK1-LS1 | Innolux | 58 | 3840×2160 |
| V580DK2-KS1 | Innolux | 58 | 3840×2160 |
| V580DK2-KS1 Rev.C8 | Innolux | 58 | 3840×2160 |
| V580DK2-LD1 | Innolux | 58 | 3840×2160 |
| V580HJ1-LD6 | Innolux | 58 | 1920×1080 |
| V580HJ1-LE6 | Innolux | 58 | 1920×1080 |
| V580HK1-LE6 | Innolux | 58 | 1920×1080 |
