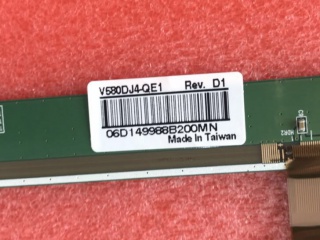

| PartNumber | V580DJ4-QE1 Rev.T2 |
| Znamka | Innolux |
| Velikost | 58 |
| Aplikacija | TV Sets |
| Resolucija | 3840×2160 |
| Sestava | CELL, a-Si TFT-LCD |
| Svetlost | |
| CR | 5000:1 |
| Barve | 1.07B |
| Osvetlitev ozadja | No |
| Vmesnik | V-by-One |
| proizvajalec | Innolux |
| ime modela | V580DJ4-QE1 Rev.T2 |
| velikost zaslona | 58 inch |
| vrsto zaslona | CELL, a-Si TFT-LCD |
| število slikovnih pik | 3840(RGB)×2160 (UHD) 76PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 1270.08 × 721.44 (H×V) |
| obris (mm) | 1282.88 × 734.44 × 1.32 (H×V×D) |
| površina okvirja (mm) | - |
| zdravljenje | Hard coating (3H), Reflection 1.8% (Typ.) |
| svetilnost | 0 cd/m² |
| kontrastno razmerje | 5000 : 1 (Typ.) (TM) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10) |
| odgovor | 9.5 (Typ.)(G to G) ms |
| dober pogled na | Symmetry |
| način dela | Super MVA, Normally Black, Transmissive |
| debelina stekla | - |
| transmisivnost | 5.0% (Typ.)(with Polarizer) |
| barvna globina | 1.07B 85% NTSC |
| osvetlitev ozadja | No B/L |
| masa | 2.80±0.14Kgs |
| uporablja za | TV Sets |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| seznam gonilnikov ic | Built-in COF 12 source + 12 gate chips |
| vrsto signala | V-by-One 8 lane , Connector 51 pins |
| napajanje z napetostjo | 12.0V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
