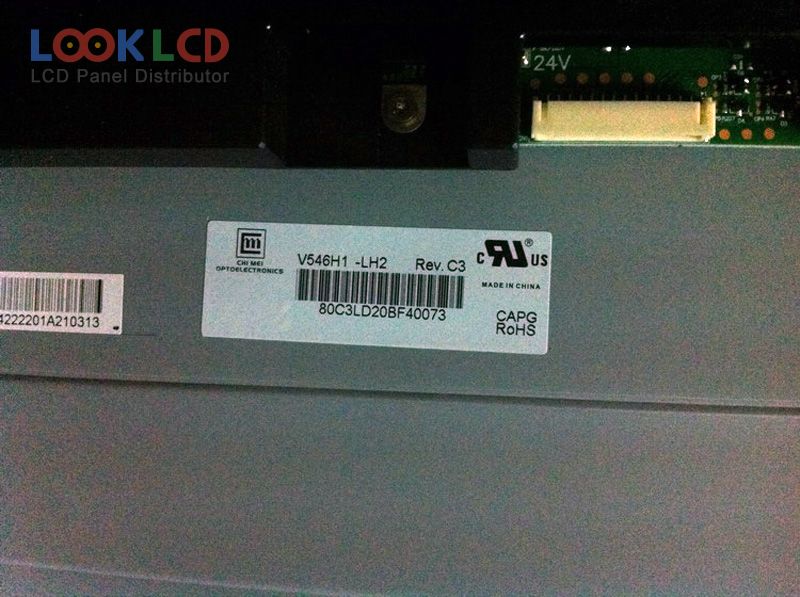

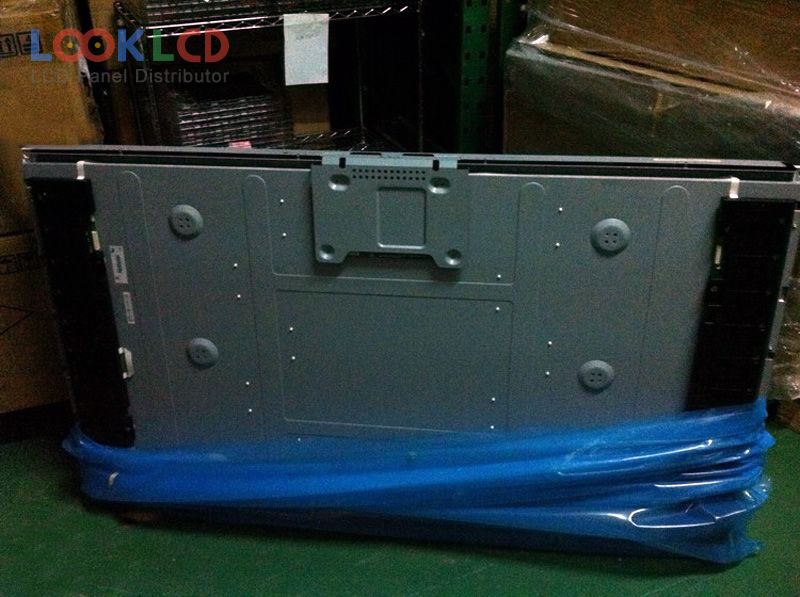

| PartNumber | V546H1-LH2 |
| Znamka | Innolux |
| Velikost | 55 |
| Aplikacija | LCTV |
| Resolucija | 1920×1080 |
| Sestava | LCM |
| Svetlost | 500 |
| CR | 4000:1 |
| Barve | 16.7M/1.07B |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | CMO |
| panelni model | V546H1-LH2 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 55 inch |
| resolucija | 1920(RGB)×1080 , FHD |
| način prikaza | Super MVA, Normally Black, Transmissive |
| aktivno območje | 1209.6×680.4 mm |
| oris | 1267.6×738.4×41.5 mm |
| površino | Antiglare (Haze 11%), Hard coating (3H) |
| svetlost | 500 cd/m² (Typ.) |
| kontrastno razmerje | 4000:1 (Typ.) |
| barve zaslona | 16.7M/1.07B (8-bit / 8-bit + Hi-FRC), CIE193172% |
| odzivni čas | 4.5 (Typ.)(G to G) |
| vidni kot | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| pogostost | 120Hz (60Hz Input) |
| tip svetilke | 22 pcsCCFLEmbedded (Inverter) |
| signalni vmesnik | LVDS (2 ch, 10-bit), 51 pins |
| vhodna napetost | 12.0V (Typ.) |
| aplikacija | LCTV |
