| PartNumber | V260B1-L02 |
| Znamka | Innolux |
| Velikost | 26.0 |
| Aplikacija | LCTV |
| Resolucija | 1366×768 |
| Sestava | LCM |
| Svetlost | 450 |
| CR | 800:1 |
| Barve | 16.2M |
| Osvetlitev ozadja | CCFL |
| Vmesnik | RSDS |
| znamka plošče | CMO |
| panelni model | V260B1-L02 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 26.0 inch |
| resolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 575.769×323.712 mm |
| oris | 626×373 mm |
| površino | |
| svetlost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) |
| barve zaslona | 16.2M (6-bit + FRC), CIE193172% |
| odzivni čas | 3/5 (Typ.)(Tr/Td) |
| vidni kot | 80/80/80/70 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 4 pcsCCFLWithout Driver |

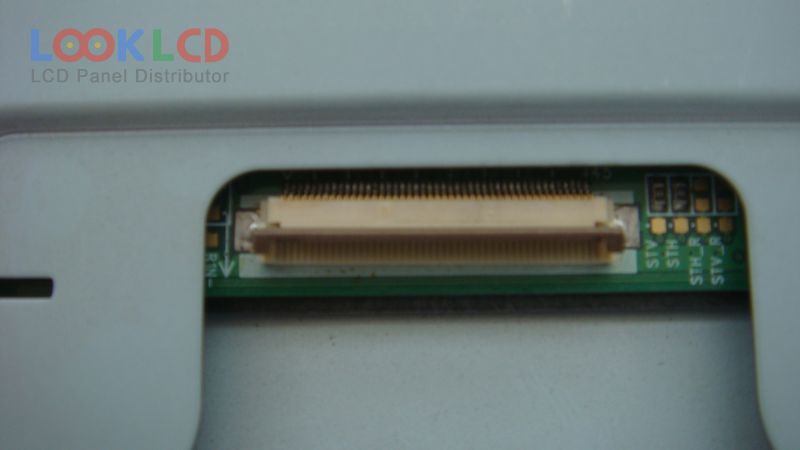

| signalni vmesnik | RSDS (1 Channel), 45 pins |
| vhodna napetost | 5.3.3/5.0V (Typ.)(VDD/VIN5) |
| aplikacija | LCTV |
