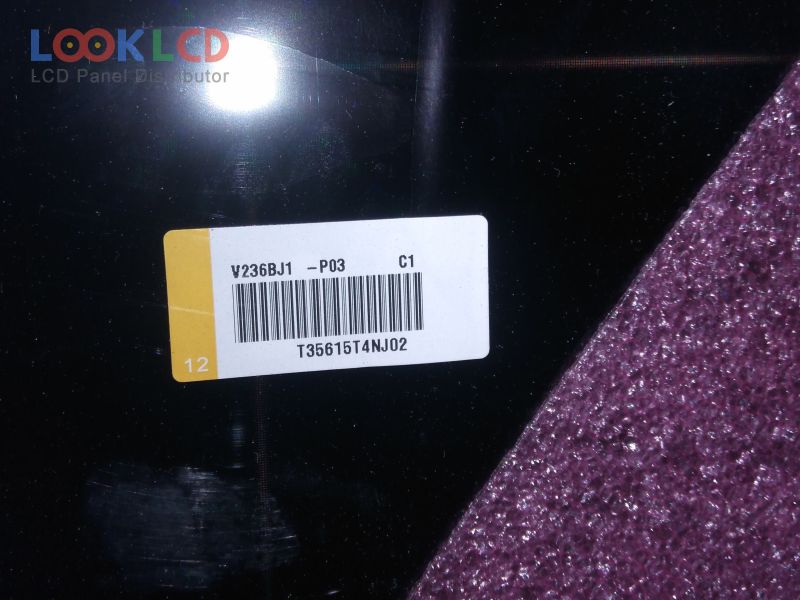

| PartNumber | V236BJ1-P03 |
| Znamka | Innolux |
| Velikost | 23.6 |
| Aplikacija | LCTV |
| Resolucija | 1366×768 |
| Sestava | CELL |
| Svetlost | 0 |
| CR | 3000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | No B/L |
| Vmesnik | LVDS |
| znamka plošče | INNOLUX |
| panelni model | V236BJ1-P03 |
| vrsta plošče | a-Si TFT-LCD , CELL |
| velikost plošče | 23.6 inch |
| resolucija | 1366(RGB)×768 , WXGA |
| način prikaza | MVA, Normally Black, Transmissive |
| aktivno območje | 521.471×293.184 mm |
| oris | 535.06×306.34 mm |
| površino | Antiglare (Haze 1%) |
| globina stekla | 0.50+0.50 mm |
| transmisivnost | 5.8% (Typ.)(with Polarizer) |
| kontrastno razmerje | 3000:1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 8.5 (Typ.)(G to G) |
| vidni kot | 88/88/88/88 (Typ.)(CR≥20)(L/R/U/D) |
| pogostost | 60Hz |
| signalni vmesnik | LVDS (1 ch, 8-bit), 30 pins |
| vhodna napetost | 12.0V (Typ.) |
| aplikacija | LCTV |
