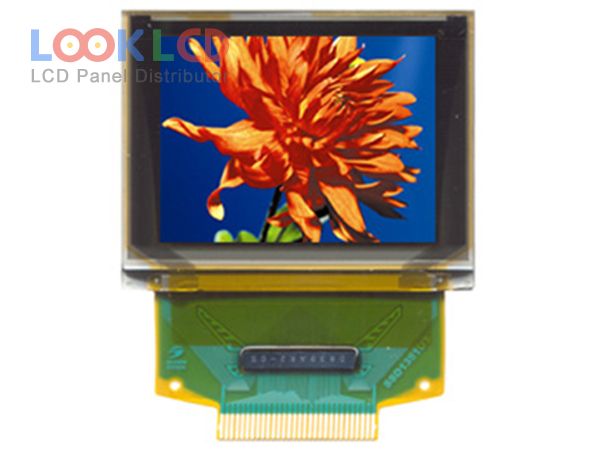

| PartNumber | UG-2896GDEAF11 |
| Znamka | WiseChip |
| Velikost | 1.3 |
| Aplikacija | IA |
| Resolucija | 128×96 |
| Sestava | OLED |
| Svetlost | 100 |
| CR | 2000:1 |
| Barve | 262K |
| Osvetlitev ozadja | self |
| Vmesnik | CPU/SPI |
| znamka plošče | Univision |
| panelni model | UG-2896GDEAF11 |
| vrsta plošče | PM-OLED , OLED |
| velikost plošče | 1.3 inch |
| resolucija | 128(RGB)×96 |
| aktivno območje | 25.708×19.28 mm |
| oris | 33.7×26.9×1.7 mm |
| površino | |
| svetlost | 100 cd/m² (Typ.) |
| kontrastno razmerje | 2000 : 1 (Typ.) |
| barve zaslona | 262K (6-bit) |
| vidni kot | 80/80/80/80 (Min.)(L/R/U/D) |
| voznik ic | COF Built-in SSD1351 |
| signalni vmesnik | 8-bit 6800/8080 parallel, 3/4-wire SPI, 30 pins |
| vhodna napetost | 2.8/12V (Typ.)(VCI/VCC) |
| rohs: | |
| aplikacija | IA |
