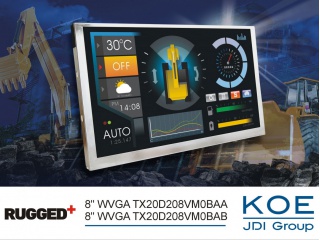

| PartNumber | TX20D208VM0BAA |
| Znamka | HITACHI |
| Velikost | 8.0 |
| Aplikacija | Industrial Outdoor H |
| Resolucija | 800×480 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | HITACHI |
| panelni model | TX20D208VM0BAA |
| velikost plošče | 8.0" |
| vrsta plošče | a-Si TFT-LCD, LCM |
| resolucija | 800(RGB)×480, WVGA, 116PPI |
| slikovnih pik | RGB Vertical Stripe |
| prikazno območje | 174(W)×104.4(H) mm |
| odprtina okvirja | 177.4(W)×107.8(H) mm |
| velikost obrisa | 190.8(W)×120.5(H) ×16.2(D) mm |
| površino | - |
| svetlost | 1200 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| način prikaza | IPS, Normally Black, Transmissive |
| najboljši pogled na | Symmetry |
| odzivni čas | 30 (Max.)(Tr+Td) |
| barve zaslona | 16.7M 70% NTSC |
| tip svetilke | WLED , 100K hours , With LED Driver |
| pogostost | 60Hz |
| zaslon na dotik | Without |
| teža plošče | 275g (Typ.) |
| aplikacija | Industrial Outdoor High Brightness Automotive Display |
| signalni vmesnik | LVDS (1 ch, 8-bit) , 20 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: -40 ~ 85 °C ; Storage Temp.: -40 ~ 90 °C |
