| PartNumber | TV080WXM-LL3 |
| Znamka | BOE |
| Velikost | 8.0 |
| Aplikacija | Pad & Tablet |
| Resolucija | 800×1280 |
| Sestava | a-Si TFT-LCD, Assemb |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | MIPI |
| znamka | BOE |
| model | TV080WXM-LL3 |
| velikost diagonale | 8.0 inch |
| vrsta | a-Si TFT-LCD, Assembly |
| slikovnih pik | 800(RGB)×1280 [WXGA] 188PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 107.64(H)×172.224(V) mm |
| obris dim. | 116.9(H)×194.17(V) ×5.35(D) mm |
| območje okvirja | - |
| zdravljenje | Clear, Hard coating |
| svetilnost | 350 cd/m² (Typ.) |
| kontrastno razmerje | 1000:1 (Typ.) (TM) |
| smer pogleda | Symmetry |
| odzivni čas | 30(Typ.)(Tr+Td) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10) |
| način delovanja | ADS, Normally Black, Transmissive |
| podpira barvo | 16.7M 60% NTSC |
| Izvor svetlobe | WLED [5S4P] , W/O Driver |
| utež | 150g (Typ.) |
| namenjen za | Pad & Tablet |
| hitrost sličic | 60Hz |
| plošča na dotik | PCAP |

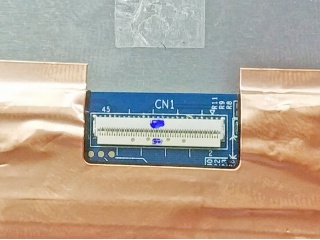

| tip vmesnika | MIPI (4 data lanes) , 45 pins Connector |
| napajanje | 1.8/6.0/-6.0/19/-11V (Typ.)(VDDI/AVDD/AVEE/VGH/VGL) |
| okolju | Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C |
| BP080WX7-100 | BOE | 8.0 | 1280×800 |
| C080VW02 V0 | AUO | 8.0 | 800×480 |
| CLAA080LG02AW | CPT | 8.0 | 800×480 |
| CLAA080NA01 CW | CPT | 8.0 | 1024×600 |
| L5F30614T65 | SANYO | 8.0 | 800×480 |
| LA080WV8-SL01 | LG Display | 8.0 | 800×480 |
| LB080WV3-A3 | LG Display | 8.0 | 800×480 |
| LB080WV4-A1 | LG Display | 8.0 | 800×480 |
| LQ080Y5CGQ1 | SHARP | 8.0 | 800×480 |
| TV080WXM-NL0 | BOE | 8.0 | 800×1280 |
