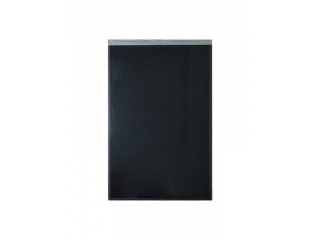

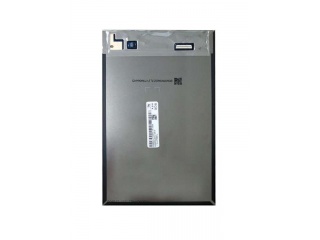

| PartNumber | TV080WUM-NL1 |
| Znamka | BOE |
| Velikost | 8.0 |
| Aplikacija | Pad & Tablet |
| Resolucija | 1200×1920 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 8S3P |
| Vmesnik | MIPI |
| proizvajalec | BOE |
| ime modela | TV080WUM-NL1 |
| velikost zaslona | 8.0 inch |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| število slikovnih pik | 1200(RGB)×1920 (WUXGA) 283PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 107.64 × 172.224 (H×V) |
| obris (mm) | 114.6 × 183.75 × 3.75 (H×V×D) |
| površina okvirja (mm) | - |
| zdravljenje | Hard coating |
| svetilnost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 1000 : 1 (Typ.) (TM) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10) |
| odgovor | 25 (Typ.)(Tr+Td) ms |
| dober pogled na | Symmetry |
| način dela | ADS, Normally Black, Transmissive |
| barvna globina | 16.7M 63% NTSC |
| osvetlitev ozadja | 8S3P WLED , 15K hours , No Driver |
| masa | 85.0g (Max.) |
| uporablja za | Pad & Tablet |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| vrsto signala | MIPI (4 data lanes) , 45 pins Connector |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -30 ~ 70 °C Operating Temp.: -20 ~ 60 °C |
