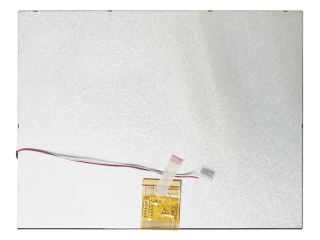

| PartNumber | TM104SDHG30-71 |
| Znamka | TIANMA |
| Velikost | 10.4 |
| Aplikacija | Industrial Automotiv |
| Resolucija | 800×600 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 500:1 |
| Barve | 262K/16.2M |
| Osvetlitev ozadja | WLED |
| Vmesnik | Parallel |
| znamka | TIANMA |
| model | TM104SDHG30-71 |
| velikost diagonale | 10.4 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 800(RGB)×600 [SVGA] 96PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 211.2(H)×158.4(V) mm |
| obris dim. | 228.4(H)×175.4(V) ×6.5(D) mm |
| območje okvirja | 214.2(H)×162.5(V) mm |
| zdravljenje | Antiglare, Hard coating (3H) |
| svetilnost | 350 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) (TM) |
| smer pogleda | 12 o'clock |
| odzivni čas | 10/15 (Typ.)(Tr/Td) |
| vidni kot | 70/70/60/70 (Typ.)(CR≥10) |
| način delovanja | TN, Normally White, Transmissive |
| podpira barvo | 262K/16.2M 50% NTSC |
| Izvor svetlobe | WLED [3S12P] , 30K hours , W/O Driver |
| utež | 360g |
| namenjen za | Industrial Automotive Display |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| tip vmesnika | Parallel RGB (1 ch, 6/8-bit) , 60 pins FPC |
| napajanje | 3.3/11.0/25.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| okolju | Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
