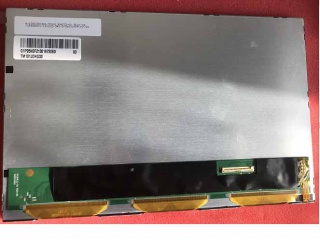

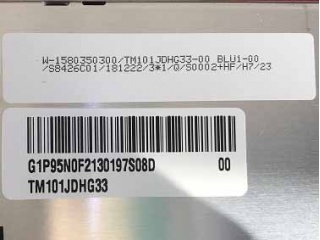

| PartNumber | TM101JDHG33 |
| Znamka | TIANMA |
| Velikost | 10.1 |
| Aplikacija | Industrial Medical I |
| Resolucija | 1280×800 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 700:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka | TIANMA |
| velikost diagonale | 10.1 inch |
| slikovnih pik | 1280(RGB)×800 [WXGA] 149PPI |
| aktivno območje | 216.96(H)×135.6(V) mm |
| območje okvirja | 219.96(H)×138.6(V) mm |
| svetilnost | 900 cd/m² (Typ.) |
| smer pogleda | Symmetry |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| podpira barvo | 262K/16.7M 50% NTSC |
| utež | 280g (Typ.) |
| hitrost sličic | 60Hz |
| tip vmesnika | LVDS (1 ch, 6/8-bit) , 40 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -40 ~ 80 °C |
| model | TM101JDHG33 |
| vrsta | a-Si TFT-LCD , LCM |
| konfiguracijo | RGB Vertical Stripe |
| obris dim. | 229.8(H)×149(V) ×9.6(D) mm |
| zdravljenje | Hard coating |
| kontrastno razmerje | 700:1 (Typ.) (TM) |
| odzivni čas | 25 (Typ.)(Tr+Td) |
| način delovanja | SFT, Normally Black, Transmissive |
| Izvor svetlobe | WLED , 40K hours , With LED Driver |
| namenjen za | Industrial Medical Imaging Outdoor High Brightness |
| plošča na dotik | Without |
