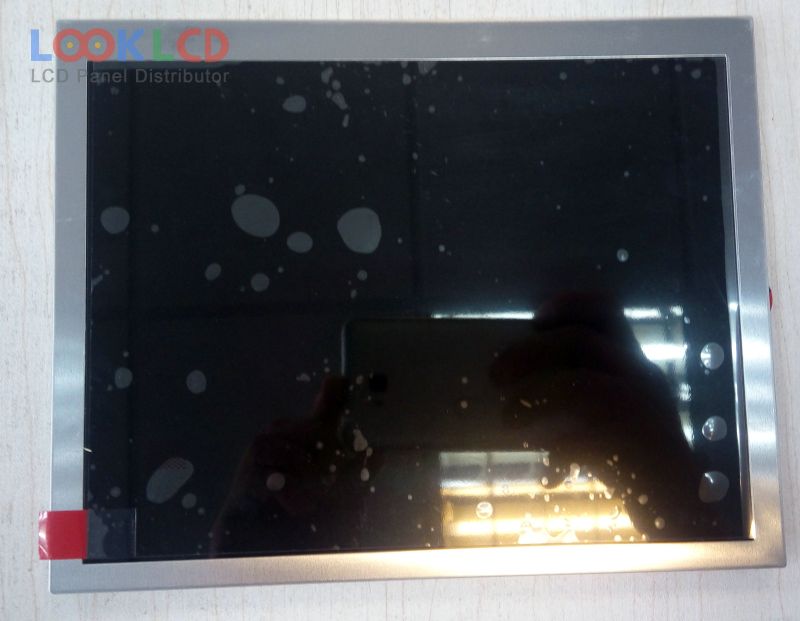

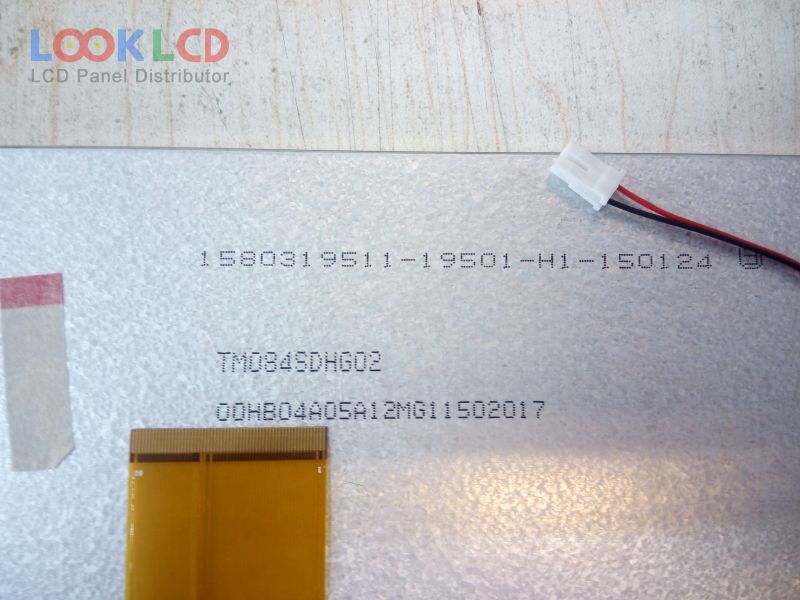

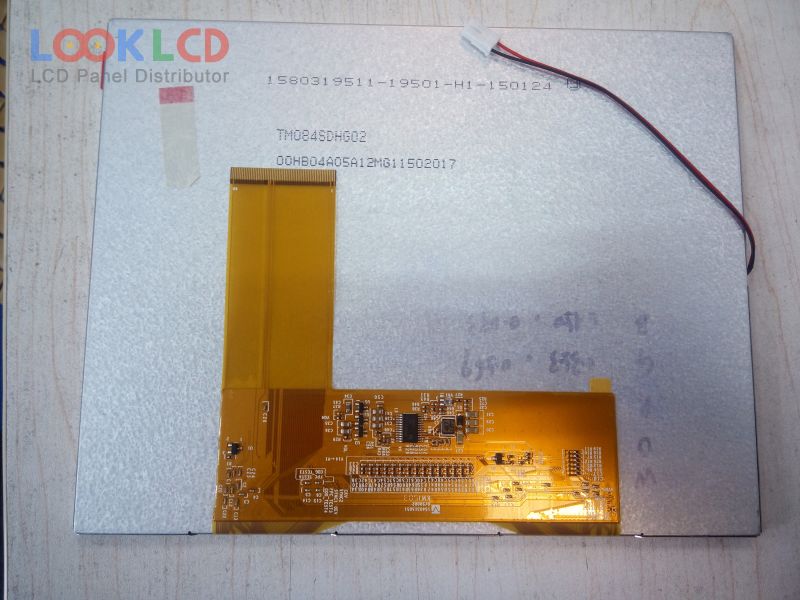

| PartNumber | TM084SDHG02 |
| Znamka | Tianma |
| Velikost | 8.4 |
| Aplikacija | IA |
| Resolucija | 800×600 |
| Sestava | LCM |
| Svetlost | 330 |
| CR | 500:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | TTL |
| znamka plošče | TIANMA |
| panelni model | TM084SDHG02 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 8.4 inch |
| resolucija | 800(RGB)×600 , SVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 170.4×127.8 mm |
| oris | 189.75×149.4 mm |
| površino | Antiglare |
| svetlost | 330 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 262K/16.7M (6-bit / 6-bit + Dithering), CIE193150% |
| odzivni čas | 20 (Typ.)(Tr+Td) |
| vidni kot | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 3S7PWLEDWithout Driver |
| signalni vmesnik | Parallel RGB (1 ch, 6/8-bit), 60 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | IA |
