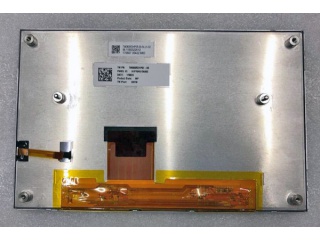

| PartNumber | TM080RDHP07 |
| Znamka | TIANMA |
| Velikost | 8.0 |
| Aplikacija | Automotive Display |
| Resolucija | 800×480 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 1000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | Parallel |
| znamka | TIANMA |
| velikost diagonale | 8.0 inch |
| slikovnih pik | 800(RGB)×480 [WVGA] 116PPI |
| aktivno območje | 174(H)×104.4(V) mm |
| območje okvirja | 177(H)×107.4(V) mm |
| svetilnost | 600 cd/m² (Typ.) |
| smer pogleda | Symmetry |
| vidni kot | 88/88/88/88 (Typ.)(CR≥10) |
| podpira barvo | 16.7M 71% NTSC |
| utež | TBD |
| hitrost sličic | 60Hz |
| tip vmesnika | Parallel RGB (1 ch, 8-bit) , 60 pins FPC |
| napajanje | 3.3/6.0/-6.0/17/-8V (Typ.)(VCC/VDDP/VDDN/VGH/VGL) |
| okolju | Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -40 ~ 95 °C ; Vibration Level: 3.0G (29.4 m/s²) |
| model | TM080RDHP07 |
| vrsta | a-Si TFT-LCD , LCM |
| konfiguracijo | RGB Vertical Stripe |
| obris dim. | 190.4(H)×120.7(V) ×16.1(D) mm |
| zdravljenje | Antiglare |
| kontrastno razmerje | 1000:1 (Typ.) (TM) |
| odzivni čas | 50 (Max.)(Tr+Td) |
| način delovanja | SFT, Normally Black, Transmissive |
| Izvor svetlobe | WLED [8S2P] , 20K hours , W/O Driver |
| namenjen za | Automotive Display |
| plošča na dotik | Without |
