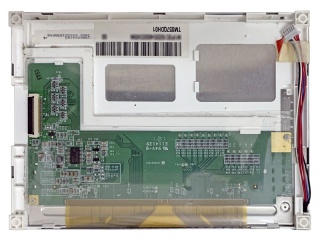

| PartNumber | TM057KDH01-10 |
| Znamka | TIANMA |
| Velikost | 5.7 |
| Aplikacija | Industrial |
| Resolucija | 320×240 |
| Sestava | LCM, a-Si TFT-LCD |
| Svetlost | |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | 5S3P |
| Vmesnik | Parallel |
| proizvajalec | TIANMA |
| ime modela | TM057KDH01-10 |
| velikost zaslona | 5.7 inch |
| vrsto zaslona | LCM, a-Si TFT-LCD |
| število slikovnih pik | 320(RGB)×240 (QVGA) 70PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 115.2 × 86.4 (H×V) |
| obris (mm) | 144 × 104.6 × 12.8 (H×V×D) |
| površina okvirja (mm) | 118.2 × 89.4 (H×V) |
| zdravljenje | Antiglare, Hard coating (3H) |
| svetilnost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 500 : 1 (Typ.) (TM) |
| vidni kot | 70/70/60/70 (Typ.)(CR≥10) |
| odgovor | 20 (Typ.)(Tr+Td) ms |
| dober pogled na | 12 o'clock |
| način dela | TN, Normally White, Transmissive |
| barvna globina | 262K 52% NTSC |
| osvetlitev ozadja | 5S3P WLED , 50K hours , No Driver |
| masa | 157g (Typ.) |
| uporablja za | Industrial |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| vrsto signala | Parallel RGB (1 ch, 6-bit) , Connector 33 pins |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
