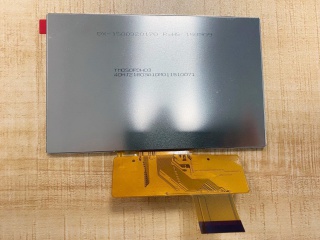

| PartNumber | TM050RDH03-40 |
| Znamka | TIANMA |
| Velikost | 5.0 |
| Aplikacija | Industrial Portable |
| Resolucija | 800×480 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 600:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | |
| znamka | TIANMA |
| velikost diagonale | 5.0 inch |
| slikovnih pik | 800(RGB)×480 [WVGA] 188PPI |
| aktivno območje | 108(H)×64.8(V) mm |
| območje okvirja | 111.1(H)×67.9(V) mm |
| svetilnost | 250 cd/m² (Typ.) |
| smer pogleda | 12 o'clock |
| vidni kot | 70/70/50/70 (Typ.)(CR≥10) |
| podpira barvo | 16.7M 50% NTSC |
| utež | 57.0g (Typ.) |
| hitrost sličic | 60Hz |
| model | TM050RDH03-40 |
| vrsta | a-Si TFT-LCD , LCM |
| konfiguracijo | RGB Vertical Stripe |
| obris dim. | 120.7(H)×75.8(V) ×3.1(D) mm |
| zdravljenje | Antiglare, Hard coating (3H) |
| kontrastno razmerje | 600:1 (Typ.) (TM) |
| odzivni čas | 20 (Typ.)(Tr+Td) |
| način delovanja | TN, Normally White, Transmissive |
| Izvor svetlobe | WLED [7S2P] , 20K hours , W/O Driver |
| namenjen za | Industrial Portable Navigation MID UMPC MP3 PMP |
| plošča na dotik | Without |
