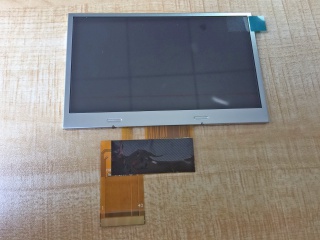

| PartNumber | TM043NDHG21 |
| Znamka | TIANMA |
| Velikost | 4.3 |
| Aplikacija | Handheld & PDA P |
| Resolucija | 480×272 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 900:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | |
| znamka | TIANMA |
| model | TM043NDHG21 |
| velikost diagonale | 4.3 inch |
| vrsta | a-Si TFT-LCD, LCM |
| slikovnih pik | 480(RGB)×272 [WQVGA] 128PPI |
| konfiguracijo | RGB Vertical Stripe |
| aktivno območje | 95.04(H)×53.856(V) mm |
| obris dim. | 105.5(H)×67.2(V) ×3.2(D) mm |
| območje okvirja | 99.04(H)×54.86(V) mm |
| zdravljenje | Glare (Haze 0%), Hard coating (3H) |
| svetilnost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 900:1 (Typ.) (TM) |
| smer pogleda | 12 o'clock |
| odzivni čas | 20 (Typ.)(Tr+Td) |
| vidni kot | 80/80/80/60 (Typ.)(CR≥10) |
| način delovanja | TN, Normally White, Transmissive |
| podpira barvo | 16.7M 54% NTSC |
| Izvor svetlobe | WLED [5S2P] , 50K hours , W/O Driver |
| utež | TBD |
| namenjen za | Handheld & PDA Portable Navigation |
| hitrost sličic | 60Hz |
| plošča na dotik | Without |
| Operating Temperature: -20 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |
