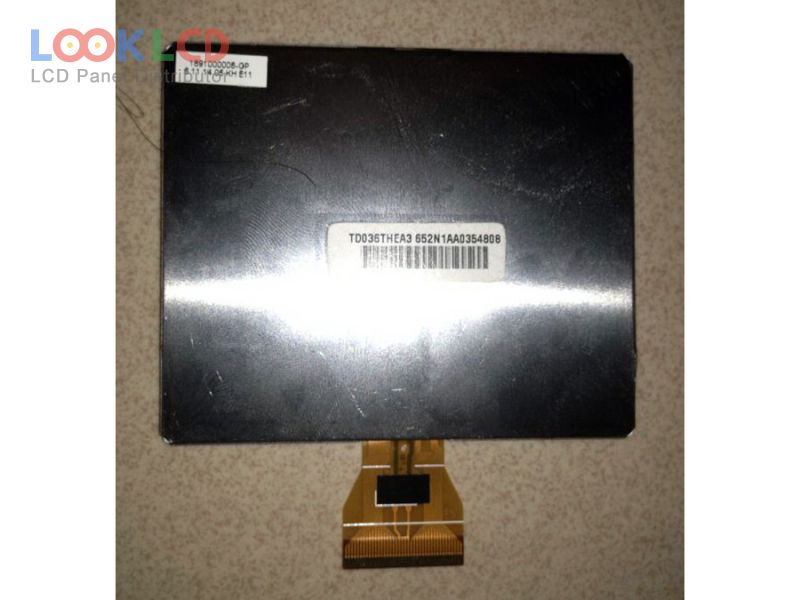

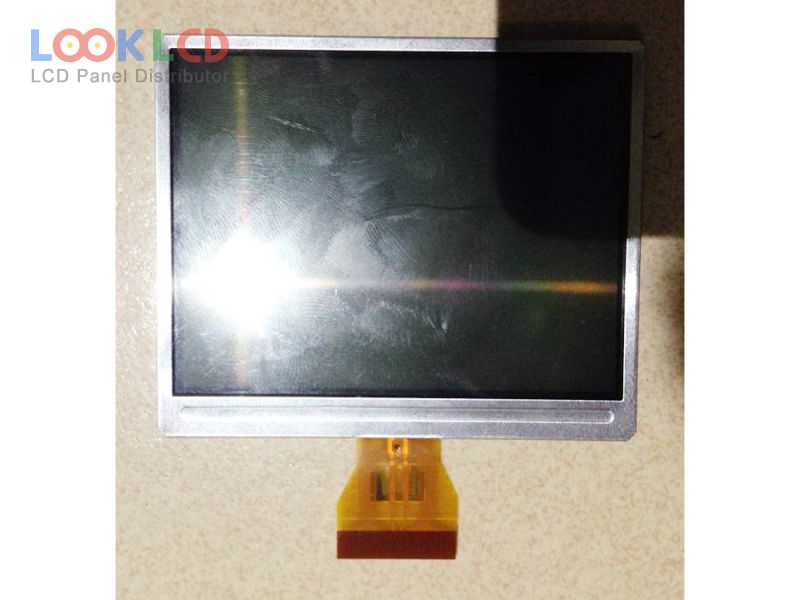

| PartNumber | TD036THEA3 |
| Znamka | TPO |
| Velikost | 3.6 |
| Aplikacija | |
| Resolucija | 320×240 |
| Sestava | LCM |
| Svetlost | 280 |
| CR | 400:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | Serial RGB |
| znamka plošče | Toppoly |
| panelni model | TD036THEA3 |
| vrsta plošče | LTPS TFT-LCD , LCM |
| velikost plošče | 3.6 inch |
| resolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 72.96×54.72 mm |
| oris | 80.2×66.3 mm |
| površino | Hard coating (3H) |
| svetlost | 280 cd/m² (Typ.) |
| kontrastno razmerje | 400:1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 13/22 (Typ.)(Tr/Td) |
| vidni kot | 50/20/40/40 (Typ.)(CR≥10)(L/R/U/D) |
| tip svetilke | 3S2PWLED |
| signalni vmesnik | Serial RGB (8-bit) + SPI, CCIR601, 40 pins |
| vhodna napetost | 3.0V (Typ.)(VCC) |
| rohs: |
