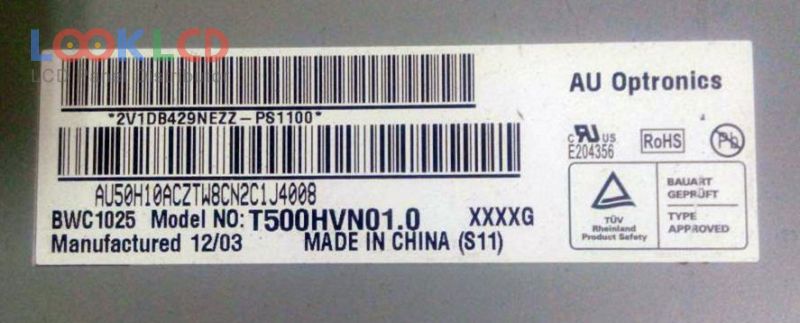

| PartNumber | T500HVN01.0 |
| Znamka | AUO |
| Velikost | 50 |
| Aplikacija | LCTV |
| Resolucija | 1920×1080 |
| Sestava | LCM |
| Svetlost | 350 |
| CR | 3000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | AUO |
| panelni model | T500HVN01.0 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 50 inch |
| resolucija | 1920(RGB)×1080 , FHD |
| način prikaza | AMVA3, Normally Black, Transmissive |
| aktivno območje | 1095.84×616.41 mm |
| oris | 1121.6×644.3×26.2 mm |
| površino | Antiglare (Haze 2%), Hard coating (3H) |
| svetlost | 350 cd/m² (Typ.) |
| kontrastno razmerje | 3000:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193172% |
| odzivni čas | 6.5 (Typ.)(G to G) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | LVDS (2 ch, 8/10-bit), 51 pins |
| vhodna napetost | 12.0V (Typ.) |
| aplikacija | LCTV |
