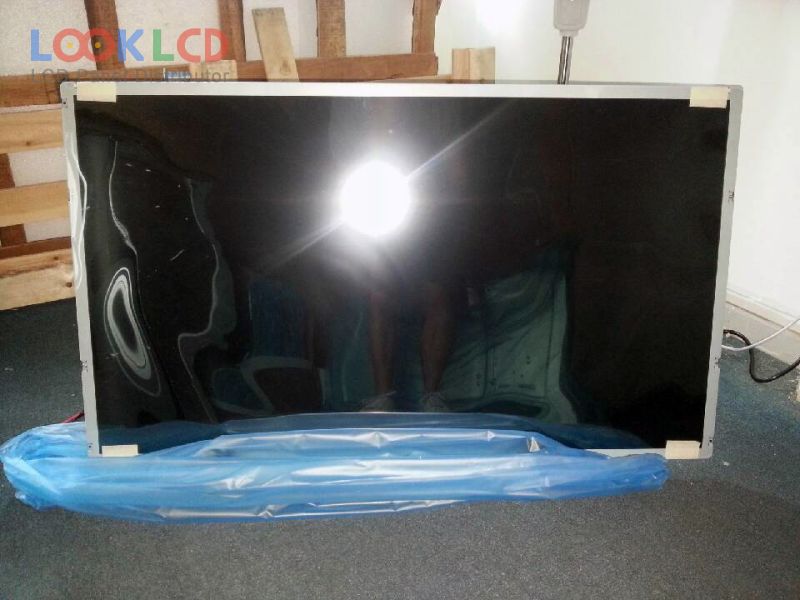

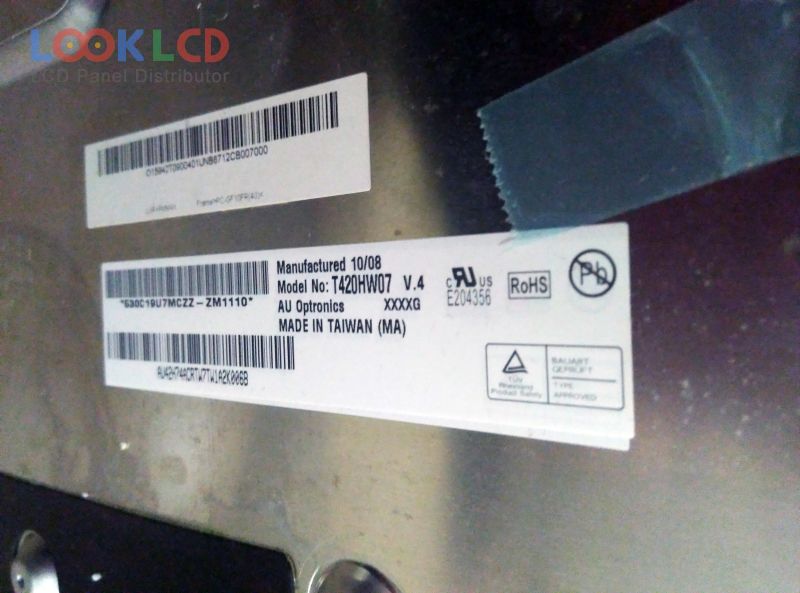

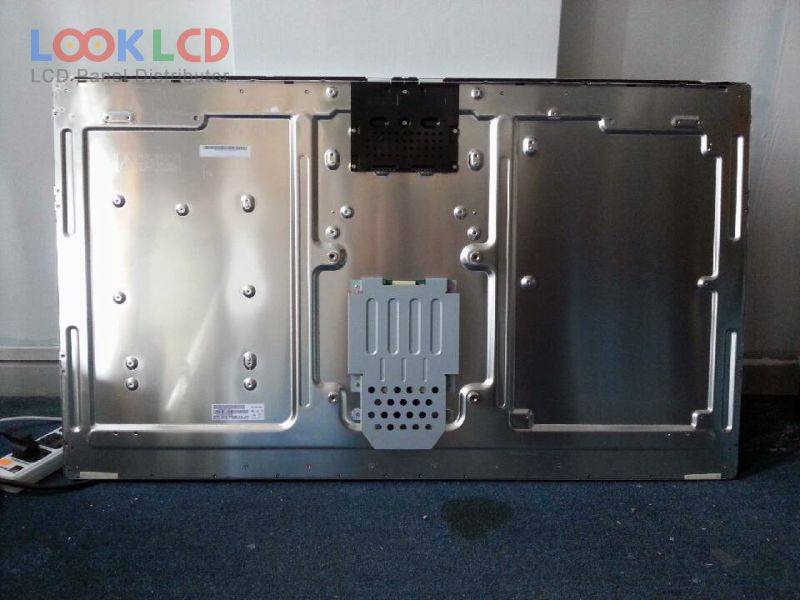

| PartNumber | T420HW07 V4 |
| Znamka | AUO |
| Velikost | 42 |
| Aplikacija | LCTV |
| Resolucija | 1920×1080 |
| Sestava | LCM |
| Svetlost | 450 |
| CR | 4000:1 |
| Barve | 1.07B |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | AUO |
| panelni model | T420HW07 V4 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 42 inch |
| resolucija | 1920(RGB)×1080 , FHD |
| način prikaza | AMVA3, Normally Black, Transmissive |
| aktivno območje | 930.24×523.26 mm |
| oris | 973.2×566.2×23.9 mm |
| površino | Antiglare (Haze 13%), Hard coating (3H) |
| svetlost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 4000:1 (Typ.) |
| barve zaslona | 1.07B (8-bit + Hi-FRC), CIE193172% |
| odzivni čas | 6.5 (Typ.)(G to G) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 120Hz |
| tip svetilke | WLEDEmbedded (LED Driver) |
| signalni vmesnik | LVDS (4 ch, 10-bit), 92 pins |
| vhodna napetost | 12.0V (Typ.) |
| aplikacija | LCTV |
