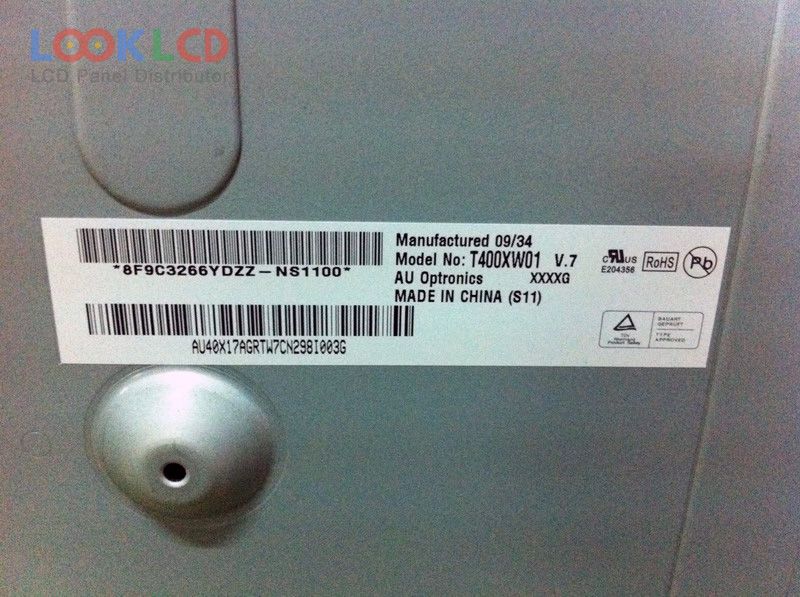

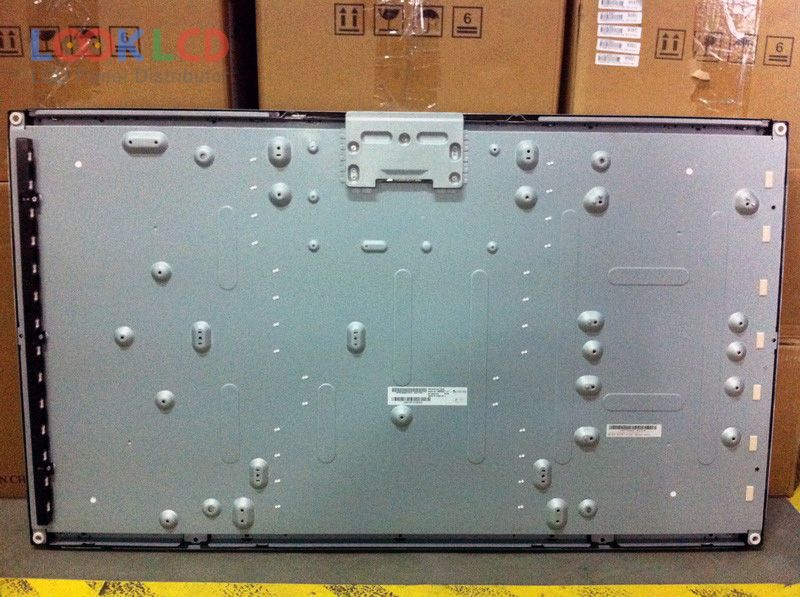

| PartNumber | T400XW01 V7 |
| Znamka | AUO |
| Velikost | 40 |
| Aplikacija | LCTV |
| Resolucija | 1366×768 |
| Sestava | LCM |
| Svetlost | 450 |
| CR | 3000:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | AUO |
| panelni model | T400XW01 V7 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 40 inch |
| resolucija | 1366(RGB)×768 , WXGA |
| način prikaza | AMVA3, Normally Black, Transmissive |
| aktivno območje | 885.168×497.664 mm |
| oris | 952×551 mm |
| površino | Antiglare (Haze 11%), Hard coating (3H) |
| svetlost | 450 cd/m² (Typ.) |
| kontrastno razmerje | 3000:1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 6.5 (Typ.)(G to G) |
| vidni kot | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 14 pcsCCFLEmbedded (Balance board) |
| signalni vmesnik | LVDS (1 ch, 8-bit), 30 pins |
| vhodna napetost | 12.0V (Typ.) |
| aplikacija | LCTV |
| LTA400HF02 | Samsung | 40 | 1920×1080 |
| LTY400HC02 | Samsung | 40 | 1920×1080 |
| T400HW01 V1 | AUO | 40 | 1920×1080 |
| T400XW01 V1 | AUO | 40 | 1366×768 |
| T400XW01 V2 | AUO | 40 | 1366×768 |
| T400XW01 V6 | AUO | 40 | 1366×768 |
| T400XW01 V7 | AUO | 40 | 1366×768 |
| V400DJ1-QS5 | Innolux | 40 | 3840×2160 |
| V400DK1-KS1 | Innolux | 40 | 3840×2160 |
| V400H1-L11 | Innolux | 40 | 1920×1080 |
| HV320WX2-500 | BOE | 31.5 | 1366×768 |
| LC320DXE-SFR1 | LG Display | 31.5 | 1366×768 |
| LC420EUD-FFF1 | LG Display | 42 | 1920×1080 |
| LC420EUF-FFP3 | LG Display | 42 | 1920×1080 |
| LC420WU5-SLA1 | LG Display | 42 | 1920×1080 |
| LC550WUD-SBM4 | LG Display | 55 | 1920×1080 |
| LC650EQF-FHM1 | LG Display | 65 | 3840×2160 |
| LTA400HL04 | Samsung | 40 | 1920×1080 |
| T216XW01 V0 | AUO | 21.6 | 1366×768 |
| T315XW02 VV | AUO | 31.5 | 1366×768 |
