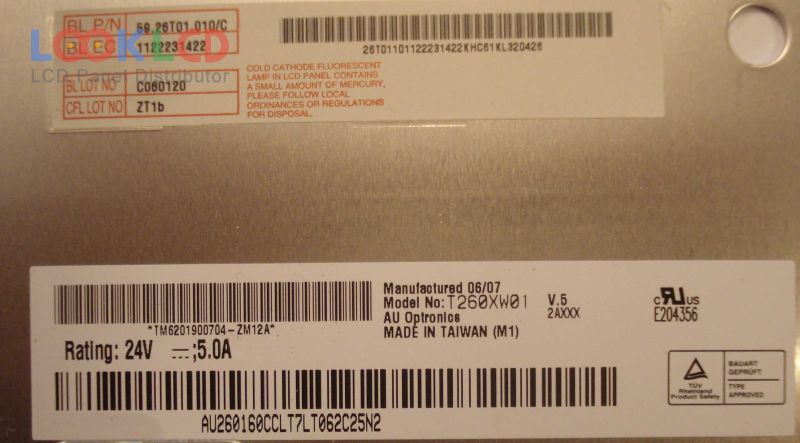

| PartNumber | T260XW01 V5 |
| Znamka | AUO |
| Velikost | 26.0 |
| Aplikacija | LCTV |
| Resolucija | 1280×768 |
| Sestava | LCM |
| Svetlost | 500 |
| CR | 600:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | CCFL |
| Vmesnik | LVDS |
| znamka plošče | AUO |
| panelni model | T260XW01 V5 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 26.0 inch |
| resolucija | 1280(RGB)×768 , WXGA |
| način prikaza | VA, Normally Black, Transmissive |
| aktivno območje | 566.4×339.84 mm |
| oris | 620.8×389 mm |
| površino | Hard coating, Antireflection |
| svetlost | 500 cd/m² (Typ.) |
| kontrastno razmerje | 600:1 (Typ.) |
| barve zaslona | 16.7M (8-bit) |
| odzivni čas | 15/10 (Typ.)(Tr/Td); 12 (Typ.)(G to G) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 16 pcsCCFLEmbedded (Inverter) |
| signalni vmesnik | LVDS (1 ch, 8-bit), 20 pins |
| vhodna napetost | 5.0V (Typ.) |
| aplikacija | LCTV |
