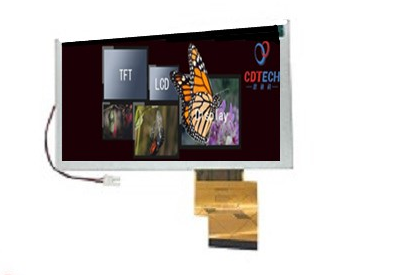

| PartNumber | S062WV04 |
| Znamka | CDTECH |
| Velikost | 6.2 |
| Aplikacija | Industrial Automotiv |
| Resolucija | 800×480 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 600:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 3S9P |
| Vmesnik | |
| proizvajalec | CDTECH |
| velikost zaslona | 6.2 inch |
| število slikovnih pik | 800(RGB)×480 (WVGA) 150PPI |
| aktivna površina (mm) | 137.52 × 77.232 (H×V) |
| površina okvirja (mm) | 140.7 × 80.4 (H×V) |
| svetilnost | 600 (Typ.)(cd/m²) |
| vidni kot | 65/65/55/65 (Typ.)(CR≥10) |
| dober pogled na | - |
| barvna globina | 16.7M |
| masa | TBD |
| hitrost osveževanja | 60Hz |
| ime modela | S062WV04 |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| ureditev | RGB Vertical Stripe |
| obris (mm) | 155.2 × 88.2 × 3.7 (H×V×D) |
| zdravljenje | - |
| kontrastno razmerje | 600 : 1 (Typ.) (TM) |
| način dela | TN, Normally White, Transmissive |
| odgovor | 30/30 (Typ.)(Tr/Td) ms |
| osvetlitev ozadja | 3S9P WLED , 25K hours , No Driver |
| uporablja za | Industrial Automotive Display |
| zaslon na dotik | Without |
| AT062TN12 | Innolux | 6.2 | |
| CLAA062LA01CW | CPT | 6.2 | 800×480 |
| PW062XS6 | E Ink | 6.2 | 480×234 |
| PW062XU7 | E Ink | 6.2 | 480×234 |
| PW062XU8 | E Ink | 6.2 | 480×234 |
| TM062RDH03 | Tianma | 6.2 | 800×480 |
| TM062RDS01 | Tianma | 6.2 | 800×480 |
| TM062RDZG10 | Tianma | 6.2 | 800×480 |
| TX16D11VM2CCA | KOE | 6.2 | 640×240 |
| TX16D18VM2CAB | KOE | 6.2 | 800×300 |
