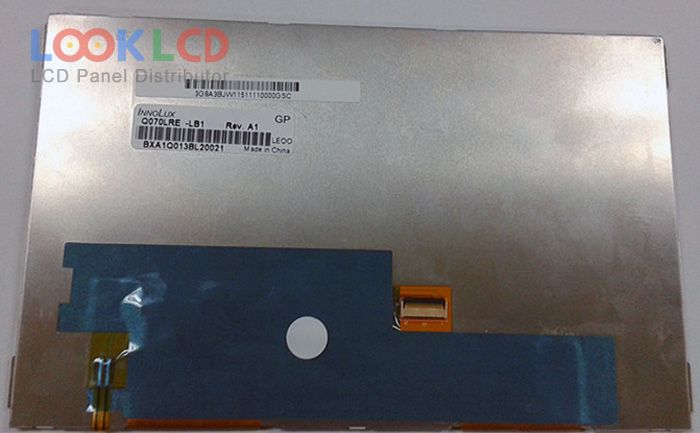

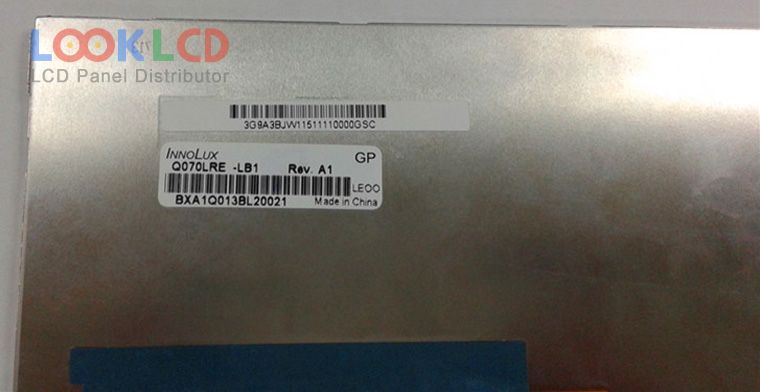

| PartNumber | Q070LRE-LB1 |
| Znamka | Innolux |
| Velikost | 7.0 |
| Aplikacija | PAD |
| Resolucija | 1024×600 |
| Sestava | LCM |
| Svetlost | 350 |
| CR | 700:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka plošče | CHIMEI INNOLUX |
| panelni model | Q070LRE-LB1 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 7.0 inch |
| resolucija | 1024(RGB)×600 , WSVGA |
| način prikaza | IPS, Normally Black, Transmissive |
| aktivno območje | 153.6×90 mm |
| oris | 164.1×102.6×3.25 mm |
| površino | Glare (Haze 0%) |
| svetlost | 350 cd/m² (Typ.) |
| kontrastno razmerje | 700:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), CIE193150% |
| odzivni čas | 30 (Typ.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 4S5PWLEDWithout Driver |
| signalni vmesnik | LVDS (1 ch, 8-bit), 31 pins |
| vhodna napetost | 3.7V (Typ.) |
| aplikacija | PAD |
