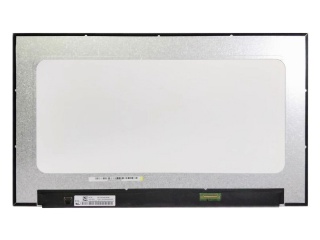

| PartNumber | NV156FHM-N4M |
| Znamka | BOE |
| Velikost | 15.6 |
| Aplikacija | Laptop |
| Resolucija | 1920×1080 |
| Sestava | LCM, a-Si TFT-LCD |
| Svetlost | |
| CR | 700:1 |
| Barve | 16.2M |
| Osvetlitev ozadja | 10S6P |
| Vmesnik | eDP |
| proizvajalec | BOE |
| ime modela | NV156FHM-N4M (BOE081A) 1 Compatible |
| velikost zaslona | 15.6 inch |
| vrsto zaslona | LCM, a-Si TFT-LCD |
| število slikovnih pik | 1920(RGB)×1080 (FHD) 141PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 344.16 × 193.59 (H×V) |
| obris (mm) | 350.66 × 205.69 × 5.4 (H×V×D) |
| površina okvirja (mm) | - |
| zdravljenje | Antiglare, Hard coating (3H) |
| svetilnost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 700 : 1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| odgovor | 30 (Typ.)(Tr+Td) ms |
| dober pogled na | Symmetry |
| način dela | ADS, Normally Black, Transmissive |
| barvna globina | 16.2M 72% NTSC |
| osvetlitev ozadja | 10S6P WLED , 15K hours , With LED Driver |
| obrisna oblika | Slim (PCBA Bent, T≤3.0mm) |
| uporablja za | Laptop |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | Without |
| vrsto signala | eDP (2 Lanes) , eDP1.3 , HBR1 (2.7G/lane) , Connector 30 pins |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B156XW01 V2 | AUO | 15.6 | 1366×768 |
| LP156WH2-TLG1 | LG Display | 15.6 | 1366×768 |
| LP156WHU-TPG1 | LG Display | 15.6 | 1366×768 |
| N156B6-L07 | Innolux | 15.6 | 1366×768 |
| N156B6-L0B | Innolux | 15.6 | 1366×768 |
| N156BGK-E33 | Innolux | 15.6 | 1366×768 |
| N156O6-L01 | Innolux | 15.6 | 1600×900 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
