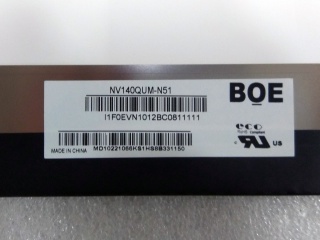

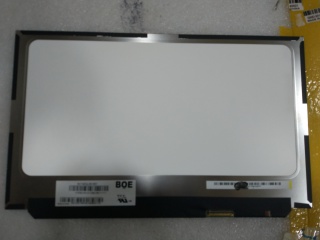

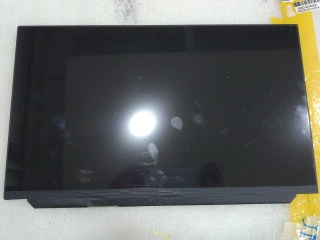

| PartNumber | NV140QUM-N51 |
| Znamka | BOE |
| Velikost | 14.0 |
| Aplikacija | Laptop |
| Resolucija | 3840×2160 |
| Sestava | a-Si TFT-LCD, LCM |
| Svetlost | |
| CR | 800:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | 10S6P |
| Vmesnik | eDP |
| znamka plošče | BOE |
| panelni model | NV140QUM-N51 (BOE06DE) |
| velikost plošče | 14.0" |
| vrsta plošče | a-Si TFT-LCD, LCM |
| resolucija | 3840(RGB)×2160, UHD, 315PPI |
| slikovnih pik | RGB Vertical Stripe |
| prikazno območje | 309.31(W)×173.99(H) mm |
| odprtina okvirja | - |
| velikost obrisa | 315.01(W)×194.66(H) ×2.4(D) mm |
| površino | - |
| svetlost | 300 cd/m² (Typ.) |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| način prikaza | ADS, Normally Black, Transmissive |
| najboljši pogled na | Symmetry |
| odzivni čas | 35 (Max.)(Tr+Td) |
| barve zaslona | 16.7M 100% sRGB |
| tip svetilke | 10S6P WLED , 15K hours , With LED Driver |
| pogostost | 60Hz |
| zaslon na dotik | Without |
| slog oblike | Slim (PCBA Flat, T≤3.2mm) |
| aplikacija | Laptop |
| signalni vmesnik | eDP (4 Lanes) , HBR2 (5.4G/lane) , 40 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: -20 ~ 60 °C ; Storage Temp.: -20 ~ 65 °C |
