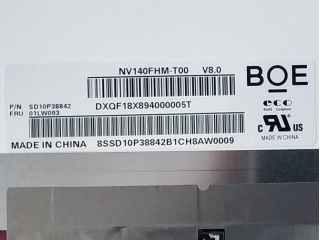

| PartNumber | NV140FHM-T00 |
| Znamka | BOE |
| Velikost | 14.0 |
| Aplikacija | Laptop |
| Resolucija | 1920×1080 |
| Sestava | LCM, a-Si TFT-LCD |
| Svetlost | |
| CR | 800:1 |
| Barve | 262K |
| Osvetlitev ozadja | 9S4P |
| Vmesnik | eDP |
| proizvajalec | BOE |
| ime modela | NV140FHM-T00 (BOE074F) |
| velikost zaslona | 14.0 inch |
| vrsto zaslona | LCM, a-Si TFT-LCD |
| število slikovnih pik | 1920(RGB)×1080 (FHD) 157PPI |
| ureditev | RGB Vertical Stripe |
| aktivna površina (mm) | 309.31 × 173.99 (H×V) |
| obris (mm) | 320.4 × 205.1 × 3.2 (H×V×D) |
| površina okvirja (mm) | - |
| zdravljenje | Hard coating (3H) |
| svetilnost | 250 cd/m² (Typ.) |
| kontrastno razmerje | 800 : 1 (Typ.) (TM) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| odgovor | 30 (Typ.)(Tr+Td) ms |
| dober pogled na | Symmetry |
| način dela | ADS, Normally Black, Transmissive |
| barvna globina | 262K 45% NTSC |
| osvetlitev ozadja | 9S4P WLED , 15K hours , With LED Driver |
| obrisna oblika | Slim (PCBA Flat, T≤3.2mm) |
| uporablja za | Laptop |
| hitrost osveževanja | 60Hz |
| zaslon na dotik | On-Cell Touch |
| vrsto signala | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , Connector 40 pins |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
