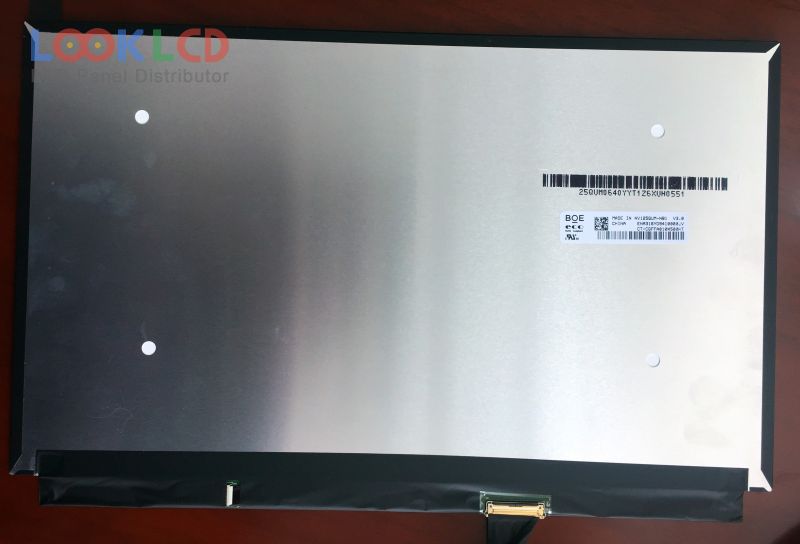

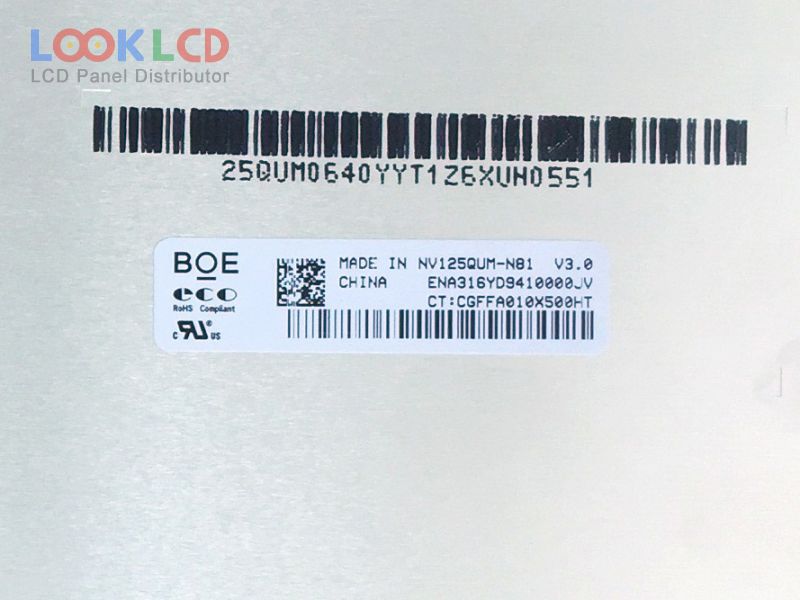

| PartNumber | NV125QUM-N81 |
| Znamka | BOE |
| Velikost | 12.5 |
| Aplikacija | NBPC |
| Resolucija | 3840×2160 |
| Sestava | LCM |
| Svetlost | 400 |
| CR | 1500:1 |
| Barve | 16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | BOE |
| panelni model | NV125QUM-N81 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 12.5 inch |
| resolucija | 3840(RGB)×2160 , UHD |
| način prikaza | HADS, Normally Black, Transmissive |
| aktivno območje | 276.48×155.52 mm |
| oris | 282.08×168.89×4.6 mm |
| slog oblike | Slim (PCBA Flat, Depth ≤3.2mm) |
| površino | Antiglare |
| svetlost | 400 cd/m² (Typ.) |
| kontrastno razmerje | 1500:1 (Typ.) |
| barve zaslona | 16.7M (8-bit), Adobe100% |
| odzivni čas | 35 (Typ.)(Tr+Td) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 8S8PWLEDEmbedded (LED Driver) |
| signalni vmesnik | eDP (4 Lanes), 40 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
