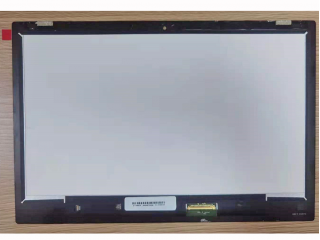

| PartNumber | NV116WHM-T1C |
| Znamka | BOE |
| Velikost | 11.6 |
| Aplikacija | Laptop |
| Resolucija | 1366×768 |
| Sestava | a-Si TFT-LCD , Assem |
| Svetlost | |
| CR | 800:1 |
| Barve | 262K |
| Osvetlitev ozadja | 8S3P |
| Vmesnik | eDP |
| znamka plošče | BOE |
| velikost plošče | 11.6" |
| resolucija | 1366(RGB)×768, WXGA, 135PPI |
| prikazno območje | 256.125(W)×144(H) mm |
| velikost obrisa | 284.85(W)×189.84(H) ×4.2(D) mm |
| svetlost | 220 cd/m² (Typ.) |
| vidni kot | 85/85/85/85 (Typ.)(CR≥10) |
| najboljši pogled na | Symmetry |
| barve zaslona | 262K 50% NTSC |
| pogostost | 60Hz |
| slog oblike | Slim (PCBA Flat, T≤3.2mm) |
| signalni vmesnik | eDP (2 Lanes) , 40 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |

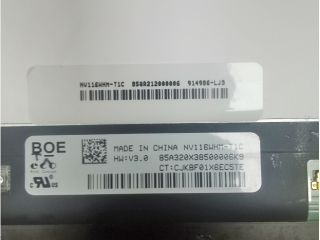

| panelni model | NV116WHM-T1C (BOE08B4) |
| vrsta plošče | a-Si TFT-LCD , Assembly |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | - |
| površino | Hard coating (7H) |
| kontrastno razmerje | 800:1 (Typ.) (TM) |
| način prikaza | - |
| odzivni čas | 30 (Typ.)(Tr+Td) |
| tip svetilke | 8S3P WLED , 15K hours , With LED Driver |
| zaslon na dotik | On-Cell Touch |
| aplikacija | Laptop |
| A116XW02 V0 | AUO | 11.6 | 1366×768 |
| B116HAT03.1 | AUO | 11.6 | 1920×1080 |
| LP116WF1-SPA1 | LG Display | 11.6 | 1920×1080 |
| LP116WH6-SPA2 | LG Display | 11.6 | 1366×768 |
| M116NWR1 R7 | IVO | 11.6 | 1366×768 |
| M116NWR6 R0 | IVO | 11.6 | 1366×768 |
| N116B6-L07 | Innolux | 11.6 | 1366×768 |
| N116BGE-LB1 | Innolux | 11.6 | 1366×768 |
| N116HSE-EA2 | Innolux | 11.6 | 1920×1080 |
| N116HSE-EJ1 | Innolux | 11.6 | 1920×1080 |
