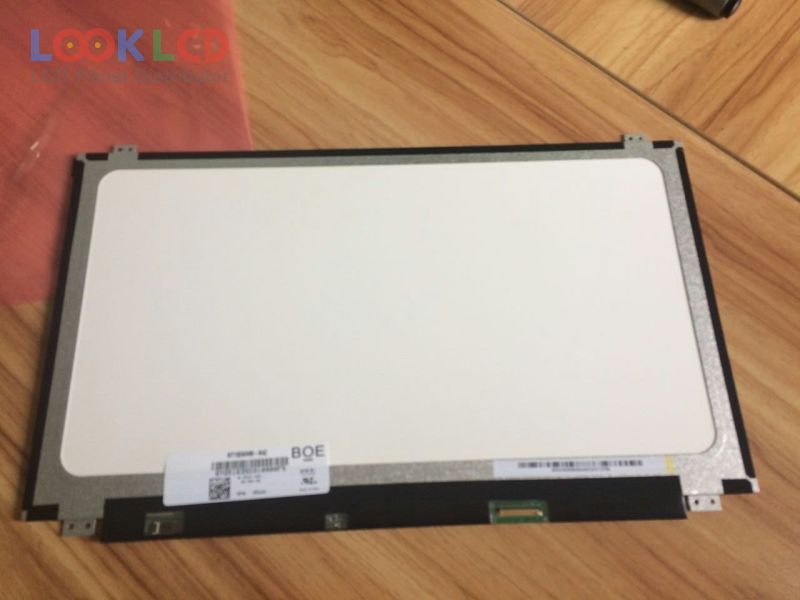

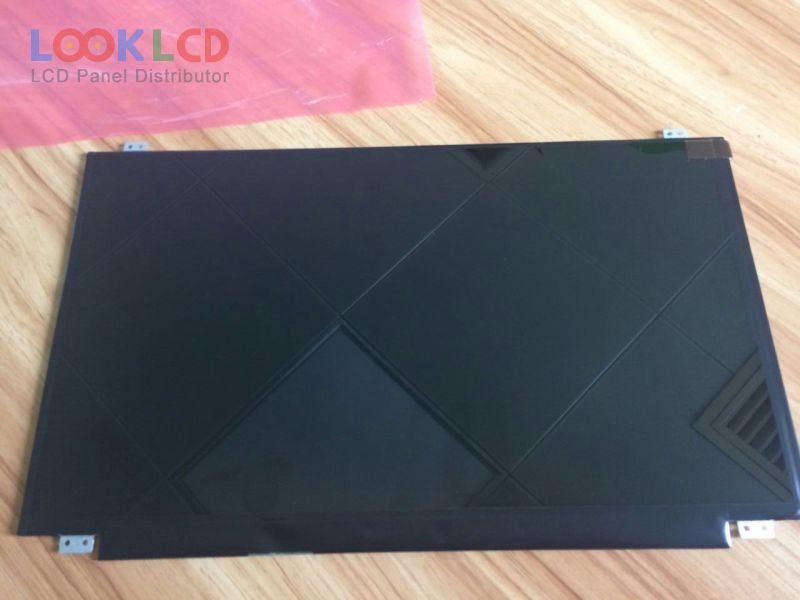

| PartNumber | NT156WHM-N42 |
| Znamka | BOE |
| Velikost | 15.6 |
| Aplikacija | NBPC |
| Resolucija | 1366×768 |
| Sestava | LCM |
| Svetlost | 220 |
| CR | 500:1 |
| Barve | 262K |
| Osvetlitev ozadja | WLED |
| Vmesnik | eDP |
| znamka plošče | BOE |
| panelni model | NT156WHM-N42 8 Compatible model |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 15.6 inch |
| resolucija | 1366(RGB)×768 , WXGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 344.232×193.536 mm |
| oris | 359.5×223.8×3.2 mm |
| slog oblike | Slim (PCBA Flat, Depth ≤3.2mm) |
| površino | Antiglare |
| svetlost | 220 cd/m² (Typ.) |
| kontrastno razmerje | 500:1 (Typ.) |
| barve zaslona | 262K (6-bit), CIE193145% |
| odzivni čas | 12 (Typ.)(Tr+Td) |
| vidni kot | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 9S4PWLEDEmbedded (LED Driver) |
| signalni vmesnik | eDP (1 Lane), 30 pins |
| vhodna napetost | 3.3V (Typ.) |
| aplikacija | NBPC |
| G156BGE-L01 | Innolux | 15.6 | 1366×768 |
| LP156WH4-TLN2 | LG Display | 15.6 | 1366×768 |
| LTN156AT05-J08 | Samsung | 15.6 | 1366×768 |
| LTN156AT30-B02 | Samsung | 15.6 | 1366×768 |
| LTN156AT32-L01 | Samsung | 15.6 | 1366×768 |
| NT156WHM-N10 | BOE | 15.6 | 1366×768 |
| NT156WHM-N12 | BOE | 15.6 | 1366×768 |
| NT156WHM-N33 | BOE | 15.6 | 1366×768 |
| NT156WHM-N42 | BOE | 15.6 | 1366×768 |
| NT156WHM-N50 | BOE | 15.6 | 1366×768 |
| B133XW01 V2 | AUO | 13.3 | 1366×768 |
| B140XTN02.4 | AUO | 14.0 | 1366×768 |
| B141EW05 V5 | AUO | 14.1 | 1280×800 |
| B141XG03 V2 | AUO | 14.1 | 1024×768 |
| B150XG02 V4 | AUO | 15.0 | 1024×768 |
| B156XW03 V1 | AUO | 15.6 | 1366×768 |
| CLAA154WB04N | CPT | 15.4 | 1280×800 |
| LTM10C348P | TOSHIBA | 10.4 | 800×600 |
| LTN140AT21-801 | Samsung | 14.0 | 1366×768 |
| LTN156AT32-L01 | Samsung | 15.6 | 1366×768 |
