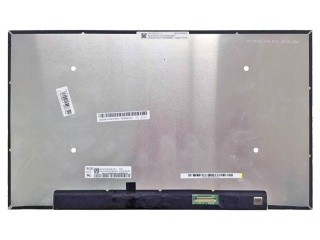

| PartNumber | NT140FHM-N46 |
| Znamka | BOE |
| Velikost | 14.0 |
| Aplikacija | Laptop |
| Resolucija | 1920×1080 |
| Sestava | LCM , a-Si TFT-LCD |
| Svetlost | |
| CR | 500:1 |
| Barve | 16.2M |
| Osvetlitev ozadja | 11S4P |
| Vmesnik | eDP |
| proizvajalec | BOE |
| velikost zaslona | 14.0 inch |
| število slikovnih pik | 1920(RGB)×1080 (FHD) 157PPI |
| aktivna površina (mm) | 309.31 × 173.99 (H×V) |
| površina okvirja (mm) | - |
| svetilnost | 220 cd/m² (Typ.) |
| vidni kot | 45/45/20/40 (Typ.)(CR≥10) |
| dober pogled na | 6 o'clock |
| barvna globina | 16.2M 45% NTSC |
| obrisna oblika | Slim (PCBA Bent, T≤3.0mm) |
| hitrost osveževanja | 60Hz |
| vrsto signala | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| napajanje z napetostjo | 3.3V (Typ.) |
| maks. ocene | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| ime modela | NT140FHM-N46 (BOE08D9) |
| vrsto zaslona | LCM , a-Si TFT-LCD |
| ureditev | RGB Vertical Stripe |
| obris (mm) | 315.81 × 186.05 × 5 (H×V×D) |
| zdravljenje | Antiglare, Hard coating (3H) |
| kontrastno razmerje | 500 : 1 (Typ.) (TM) |
| odgovor | 12 (Typ.)(Tr+Td) ms |
| način dela | TN, Normally White, Transmissive |
| osvetlitev ozadja | 11S4P WLED , 15K hours , With LED Driver |
| uporablja za | Laptop |
| zaslon na dotik | Without |
