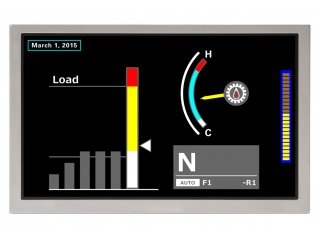

| PartNumber | NL8048BC21-03F |
| Znamka | NLT |
| Velikost | 8.0 |
| Aplikacija | Industrial Outdoor H |
| Resolucija | 800×480 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 1000:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | WLED |
| Vmesnik | LVDS |
| znamka | NLT |
| velikost diagonale | 8.0 inch |
| slikovnih pik | 800(RGB)×480 [WVGA] 116PPI |
| aktivno območje | 174(H)×104.4(V) mm |
| območje okvirja | - |
| svetilnost | 1000 cd/m² (Typ.) |
| smer pogleda | Symmetry |
| vidni kot | 88/88/88/88 (Typ.)(CR≥10) |
| podpira barvo | 262K/16.7M 72% NTSC |
| utež | 225g |
| hitrost sličic | 60Hz |
| tip vmesnika | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| napajanje | 3.3V (Typ.) |
| okolju | Operating Temperature: -40 ~ 85 °C ; Storage Temperature: -40 ~ 85 °C ; Vibration Level: 6.8G (66.64 m/s²) |
| model | NL8048BC21-03F |
| vrsta | a-Si TFT-LCD , LCM |
| konfiguracijo | RGB Vertical Stripe |
| obris dim. | 192(H)×122(V) mm |
| zdravljenje | Antiglare |
| kontrastno razmerje | 1000:1 (Typ.) (TM) |
| odzivni čas | 20 (Typ.)(Tr+Td) |
| način delovanja | SFT, Normally Black, Transmissive |
| Izvor svetlobe | WLED |
| namenjen za | Industrial Outdoor High Brightness |
| plošča na dotik | Without |
