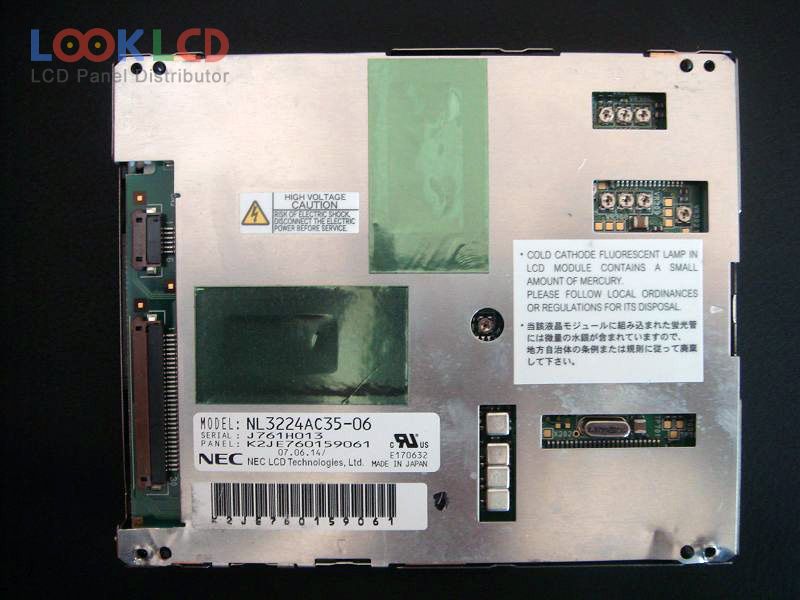

| PartNumber | NL3224AC35-06 |
| Znamka | NLT |
| Velikost | 5.5 |
| Aplikacija | CNS |
| Resolucija | 320×240 |
| Sestava | LCM |
| Svetlost | 250 |
| CR | 85:1 |
| Barve | Full color |
| Osvetlitev ozadja | CCFL |
| Vmesnik | Analog |
| znamka plošče | NEC |
| panelni model | NL3224AC35-06 |
| vrsta plošče | a-Si TFT-LCD , LCM |
| velikost plošče | 5.5 inch |
| resolucija | 320(RGB)×240 , QVGA |
| način prikaza | TN, Normally White, Transmissive |
| aktivno območje | 111.36×83.52 mm |
| oris | 134×110 mm |
| površino | Antiglare, Hard coating (2H) |
| svetlost | 250 cd/m² (Typ.) |
| kontrastno razmerje | 85:1 (Typ.) |
| barve zaslona | Full color , CIE193150% |
| odzivni čas | 16 (Typ.)(Tr+Td) |
| vidni kot | 50/50/25/25 (Typ.)(CR≥10)(L/R/U/D) |
| pogostost | 60Hz |
| tip svetilke | 1 pcsCCFLEmbedded (Inverter) |
| signalni vmesnik | Analog RGB + Composite Video, 30 pins |
| vhodna napetost | 9.5V (Typ.) |
| aplikacija | CNS |
