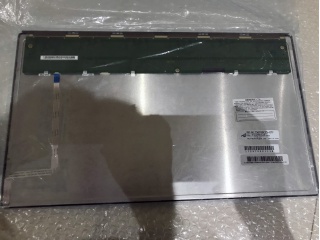

| PartNumber | NL13676BC25-07F |
| Znamka | NLT |
| Velikost | 15.6 |
| Aplikacija | Industrial Outdoor H |
| Resolucija | 1366×768 |
| Sestava | a-Si TFT-LCD , LCM |
| Svetlost | |
| CR | 900:1 |
| Barve | 262K/16.7M |
| Osvetlitev ozadja | 6 |
| Vmesnik | LVDS |
| znamka plošče | NLT |
| velikost plošče | 15.6" |
| resolucija | 1366(RGB)×768, WXGA, 100PPI |
| prikazno območje | 344.232(W)×193.536(H) mm |
| velikost obrisa | 363.8(W)×215.9(H) ×13.15(D) mm |
| svetlost | 1250 cd/m² (Typ.) |
| vidni kot | 80/80/80/80 (Typ.)(CR≥10) |
| najboljši pogled na | 6 o'clock |
| barve zaslona | 262K/16.7M 60% NTSC |
| pogostost | 60Hz |
| teža plošče | 1.07/1.17Kgs (Typ./Max.) |
| signalni vmesnik | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| vhodna napetost | 3.3V (Typ.) |
| okolju | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| panelni model | NL13676BC25-07F |
| vrsta plošče | a-Si TFT-LCD , LCM |
| slikovnih pik | RGB Vertical Stripe |
| odprtina okvirja | 347.55(W)×196.85(H) mm |
| površino | Antiglare, Hard coating (3H) |
| kontrastno razmerje | 900:1 (Typ.) (TM) |
| način prikaza | TN, Normally White, Transmissive |
| odzivni čas | 3/15 (Typ.)(Tr/Td) |
| tip svetilke | 6 strings WLED , 7K hours , Without Driver |
| zaslon na dotik | Without |
| aplikacija | Industrial Outdoor High Brightness |
